Arduino 4 Channel Relay Shield Module DC 5v [High Quality]
- Product Code: TAP_WM_AS_4chR
- Availability: Out Of Stock
-
₹299.00 (+ GST)
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)

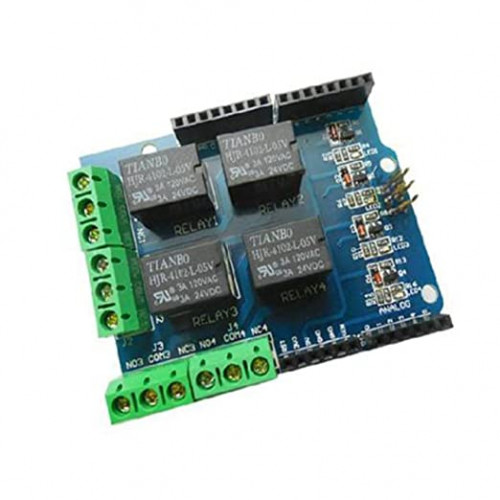

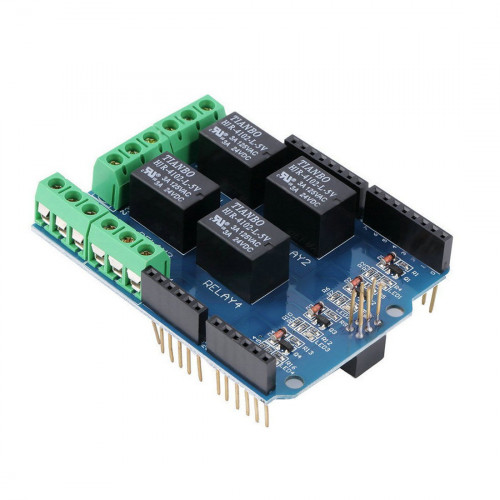

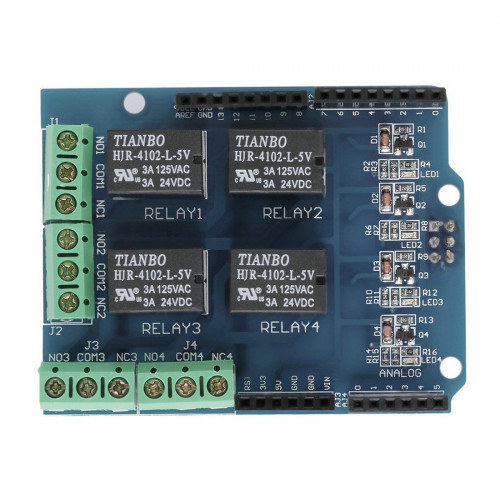

Arduino 4 Channel Relay Shield Module DC 5V
The Arduino 4 Channel Relay Shield Module DC 5V facilitates control of high-power equipment using low-current signals. It integrates directly with compatible Arduino motherboards. The module features four independent relays. Each relay is capable of switching AC loads between 120-240V. It operates at 5V DC. The design allows for expansion with other Arduino shields via its stackable form factor. Onboard LED indicators provide status monitoring for each relay. This module supports various microcontroller-based projects.
Specifications:
- Number of Channels: 4
- Number of Relays: 4
- Operating Voltage: 5V DC
- Relay Switching Voltage: 120-240V AC
- Product Type: Arduino Shield Module

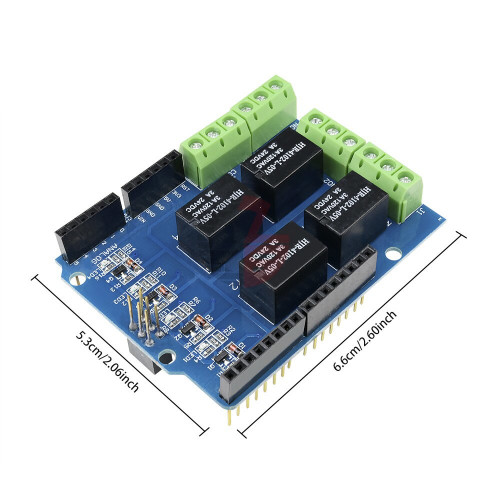

- Dimensions (LxW): 66 x 53 mm
- Weight: 45g (approx)
- Quality: High Quality
- Interface: Standard Arduino Shield
Key features and benefits:
- Standard Arduino Shield interface.

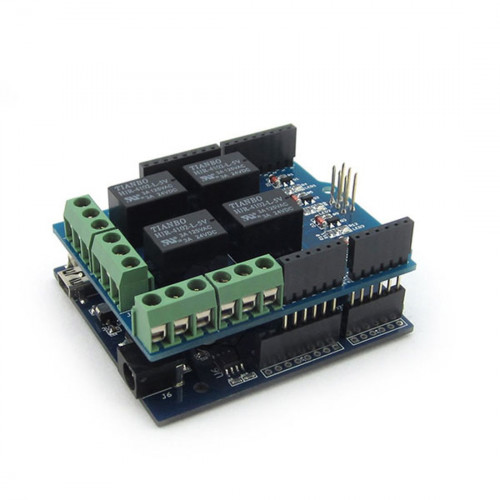

- Stackable design for expansion with other boards.
- M3 screw positioning holes for mounting.
- High-drive capability (5V or 3.3V logic) with normally open contact closure.

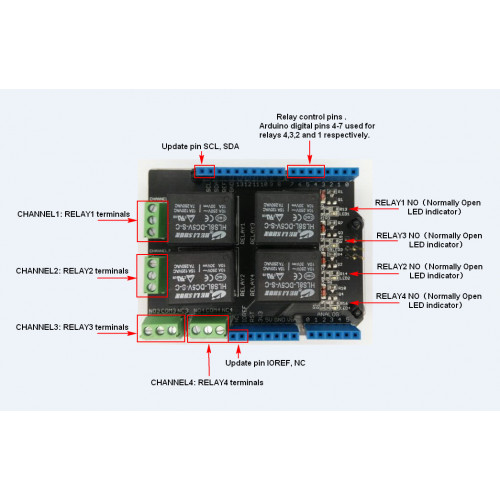

- Individual red LED indicators for relay status.
- Controls high-power AC/DC devices using low-current signals.
- Reduces complex patch cable requirements.
Applications:
- Smart Home Automation Systems
- SCM (Single-Chip Microcontroller) Control Projects
- Robotics and Industrial Automation
- DIY Electronics and Prototyping
- Remote Control of Lighting and Appliances
Frequently Asked Questions:
Q: What is the operating voltage of the Arduino 4 Channel Relay Shield?
A: The Arduino 4 Channel Relay Shield operates at 5V DC.
Q: What type of loads can the Arduino 4 Channel Relay Shield switch?
A: The module's relays are capable of switching AC loads between 120-240V.
Q: How many relays are included on this Arduino shield module?
A: This Arduino shield module includes four independent relays.
Package Includes:
1x Arduino 4 Channel Relay Shield Module DC 5V.*Image shown is a representation only.
