Laser Diode Module 650NM 5V - (Compatible with Arduino)

  • Product Code: SP-LDM-5v
  • Availability: In Stock
  • ₹35.50 (+ GST)

  • 25 or more quantity/sets : ₹35.00
  • 50 or more quantity/sets : ₹34.00

  • Shipping Charges Start from Rs.49*
  • Fast Order Processing <24hr
  • Shipment using reputed courier with 90% delivery in 1 - 3 working days
  • All order with GST invoice (B2B: 100% cliam GST credit input tax)

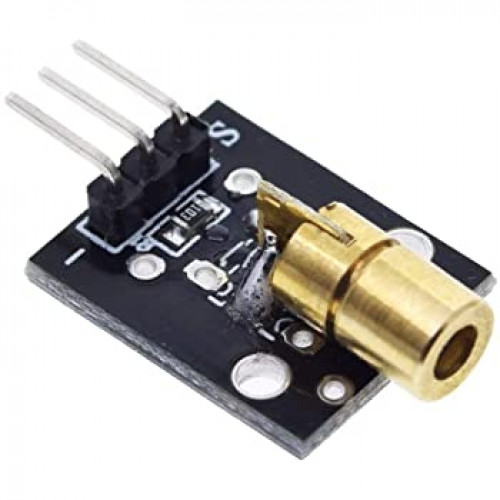

Laser Diode Module (Flame sensor)


This laser diode module head is composed of a light-emitting tube, condenser lens, and adjustable copper sleeve and it is assembled at the manufacturer end, the focal length of the lens is adjusted glued by strong glue stick, which can work directly after connecting to a 5V DC power supply.

Laser Diode Module is a breadboard friendly, low cost having the wavelength of 650nm and operating voltage of 5V. This module can be directly connected to any MCA or Arduino for various applications

Pay attention to the laser cell to prevent from being burnt or battery explosion due to a short circuit when removing the battery.

Warning: This is a low power laser device, however as with all laser devices care should be taken when in use. You should never look directly in to its beam or point the laser at another person. Doing so may cause permanent eye damage. This item is not suitable for children.

Specification & Features:

  • Operating Voltage (VDC)     :3 ~ 5
  • Laser Output Type                :Red Laser Straight
  • Driver                                      :APC circuit
  • Line Length                           :135 mm
  • Transmit Power                           :58mW
  • Max. Operating Current (mA) :40
  • Operating Temperature (°C)    :-30 to 60
  • Dimensions -                                 : 20 mmx 15mm
  • Weight (gm)                            : 3

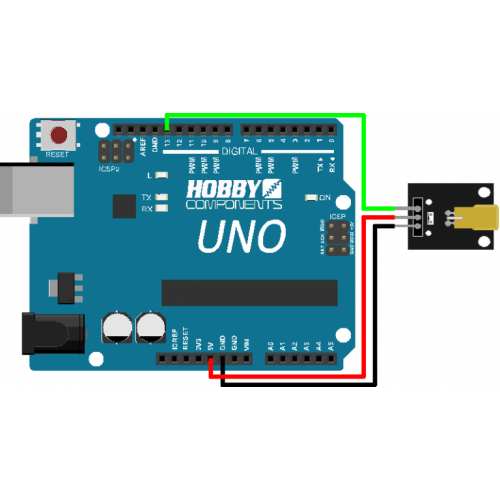

Pin Connection/Out:

  • Power: 3.3V-5V VCC
  • GND: GND
  • S : Control Signal (High laser ON)


  • Laser test tools
  • Concentricity positioning
  • Medical equipment positioning
  • Production of signal equipment
  • Use for DIY or robots
  • All kinds of level meters
  • Laser projector
  • Laser toys, etc

Package Includes:

1 x Laser Diode Module

*Image shown is a representation only.
