3 Axis Gyroscope - MPU-6050: Accelerometer module (Arduino module)

GY521- Gyro Sensor + Accelerometer module : MPU-6050

Description

This device combine a 3-axis accelerometer and a 3-axis gyroscope on the same silicon together with an onboard Digital Motion Processor (DMP). This chip is capable of processing complex 9-axis MotionFusion algorithms.

Specification

• Sensor Type: Gyro Sensoe + Accelerometer
• Power Supply: 3-5v (internal low dropout regulator)
• Communication Modes: Standard IIC communications protocol
• Chip built-in 16bit AD converter, 16-bit data output
• Gyroscope Range: 250 500 1000 2000 or s
• Acceleration Range: 2 4 8 16g
• Immersion gold PCB machine welding process to ensure quality
• Pin pitch 2.54mm

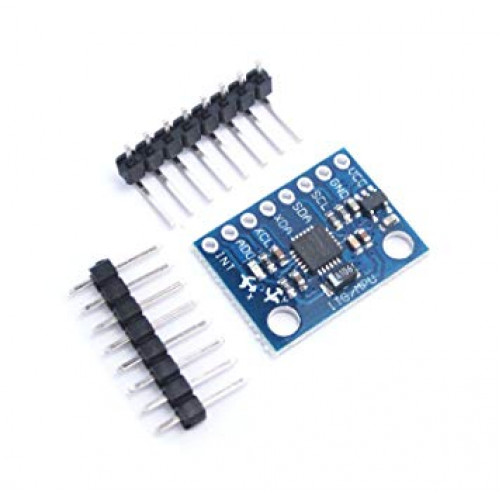

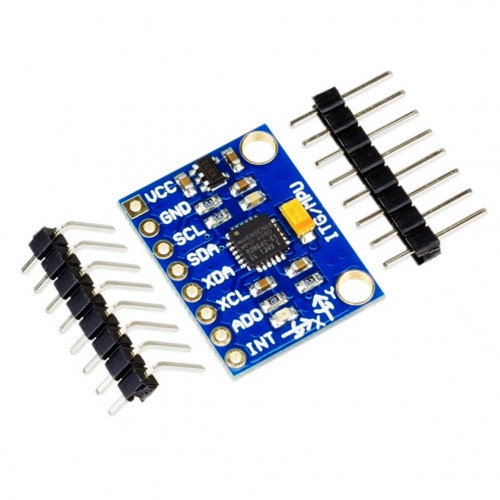

Package Includes:

1xMPU-6050 sensor

1x 1*8 Right angel berg strip connector

1x 1*8 Straight berg strip connector

*Image shown is a representation only.
