Delay Timer - 5 V TRIGGERED - One Relay / Switch Module with Display + Adjustable timing cycle

5V Triggered Delay Timer Relay Module with Display and Adjustable Timing

This 5V Triggered Delay Timer Relay Module provides precise control for electronic applications. It operates within a 6-30V DC range and supports Micro USB 5V power input. The module features an adjustable timing cycle from 0.1 seconds to 999 minutes. Parameter setting is facilitated by a Seven Segment LED display and integrated buttons. Optocoupler isolation is incorporated for enhanced anti-jamming capabilities. A built-in memory function retains configured settings after power loss. The module is capable of switching loads up to DC 30V 5A or AC 220V 5A. This industrial-grade board is suitable for various timed control applications.

Specifications:

• Operating Voltage: 6 - 30V DC (supports Micro USB 5V)
• Trigger Signal Source: High-level trigger (3V-24V)
• Delay Time Range: 0.1 second ~ 999 minutes
• Output Capability: DC 30V 5A or AC 220V 5A
• Display Type: Seven Segment LED
• Channels: 1 Channel Delay Triggered
• Quiescent Current: 20mA
• Operating Current: 50mA
• Service Life: > 100,000 times
• Working Temperature: -40°C to 85°C
• Dimensions: 6.2 x 3.8 x 1.7 cm
• Isolation: Optocoupler Isolation

Key features and benefits:

• Adjustable timing cycle: 0.1 seconds to 999 minutes
• Seven Segment LED Display for parameter visualization
• Operating voltage range: 6-30V DC, with Micro USB 5V support
• High-level trigger signal source: 3V-24V
• Optocoupler isolation for anti-jamming capability
• Memory function for setting retention post-power loss
• Load switching capability: DC 30V 5A or AC 220V 5A

Applications:

• Home Automation Systems
• DIY Electronic Projects
• Industrial Control & Automation
• Automatic Switching Applications
• Robotics & Mechatronics
• Timed Lighting or Appliance Control

Frequently Asked Questions:

Q: What is the operating voltage range for this delay timer module?
A: The module operates within a 6-30V DC range and supports Micro USB 5V power input.

Q: What is the adjustable timing range of the module?
A: The module offers an adjustable timing cycle from 0.1 seconds up to 999 minutes.

Q: What types of loads can this relay module switch?
A: This module is capable of switching loads up to DC 30V 5A or AC 220V 5A.

Package Includes:

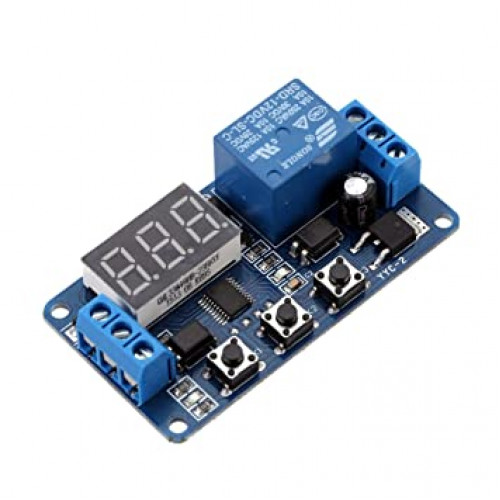

*Image shown is a representation only.
