DS1307 - Real Time Clock (RTC) Module - with Battery (Break out board)

  • Product Code: BM_DS1307_RTC
  • Availability: In Stock
  • ₹55.00 (+ GST)

  • 10 or more quantity/sets : ₹52.00
  • 25 or more quantity/sets : ₹50.00
  • 50 or more quantity/sets : ₹49.00

  • Shipping Charges Start from Rs.49*
  • Fast Order Processing <24hr
  • Shipment using reputed courier with 90% delivery in 1 - 3 working days
  • All order with GST invoice (B2B: 100% cliam GST credit input tax)

DS1307 - Real Time Clock Module (Break out board)


The new DS1307 Real Time Clock Mini Board is a compact, easy to control Real Time Clock, ideal for use when setting up a real-time control system or for use when date stamping is required for various monitoring applications.

This is a custom designed module for the DS1307 Real Time Clock (RTC). This compact, easy to install mini-board uses the standard I2C bus for control and data transfer.
The time is maintained and updated within the DS1307 IC. Included on-board is also battery back-up, enabling the time to be maintained even with power disconnected from the board. The DS1307 IC stores time values in separate registers, for years, month, day, hour, minutes and seconds.
  • Includes Dallas Semiconductor DS1307 Real Time Clock
  • On-Board Battery Back-Up
  • Standard I2C Bus Control Connection
  • Easily Add a Real Time Clock to your Project
  • Compact and Easy To Mount Board
  • Ideal for use with our Development and Control Boards
  • DS1307 based RTC
  • 1Hz output pin
  • Compact design, 27mm * 28mm * 8.4mm
Package includes: 1 x DS1307 - Real Time Clock (RTC) Module
                                1x CR2032 Battery

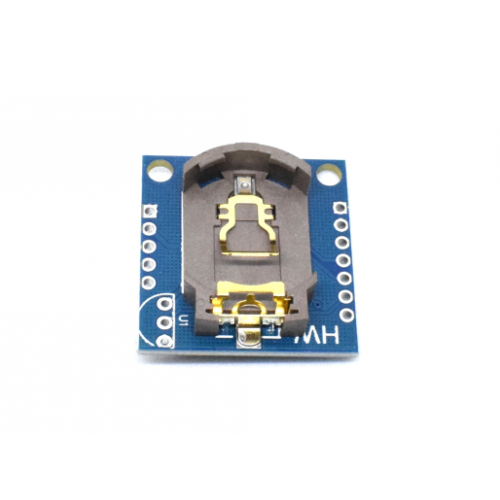

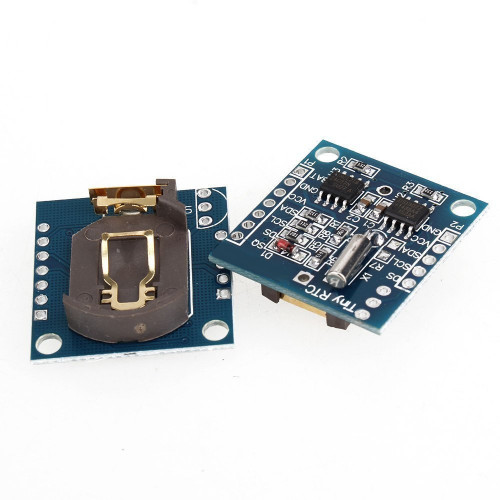

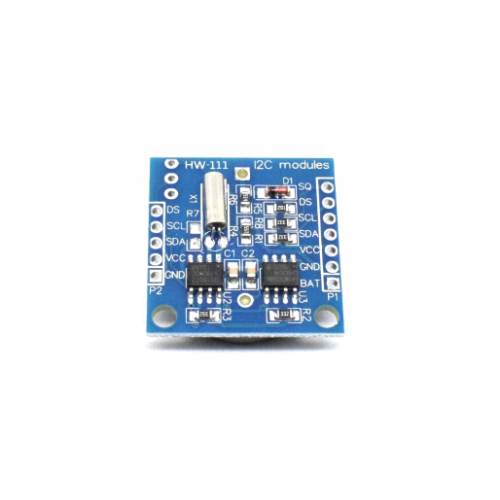

*Image shown is a representation only.
