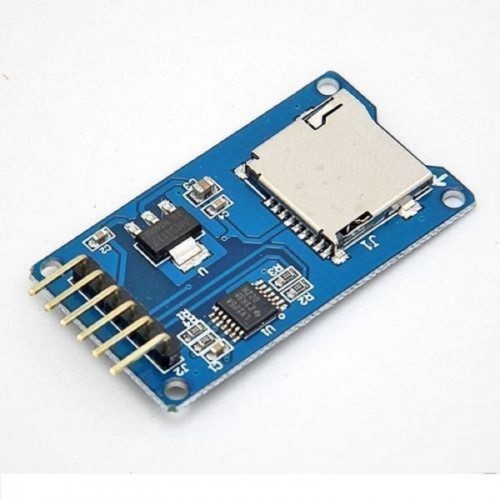

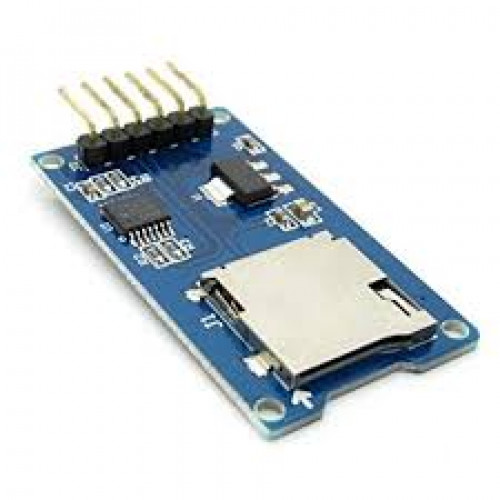

Micro SD Card Module - Breakout Board

Micro SD Card Module Breakout Board with SPI Interface

The Micro SD Card Module Breakout Board provides external data storage for electronic projects. It functions as a Micro SD reader and adapter, facilitating data transfer. The module supports dual I/O voltages, integrating with 3.3V and 5V microcontrollers. A standard SPI interface ensures compatibility with development boards such as Arduino. It expands embedded system capabilities, handling large datasets. Applications include data logging, audio playback, and graphics storage. Compact design and mounting options suit various DIY electronics. The module offers expandable memory solutions.

Specifications:

• Card Support: Micro SD (up to 2GB), Micro SDHC (up to 32GB)
• Interface Voltage: 3.3V / 5V (Dual I/O)
• Input Power Supply: 4.5V - 5.5V
• Communication Interface: Standard SPI
• Onboard Regulator: Integrated 3.3V
• Mounting Holes: 4 x M2
• Dimensions: 4.1 x 2.4 cm

Key features and benefits:

• Supports Micro SD cards up to 2GB and Micro SDHC cards up to 32GB.
• Dual I/O voltage compatibility for 3.3V and 5V systems.
• Integrated 3.3V voltage regulator with 4.5V-5.5V input power.
• Standard SPI communication interface.
• Includes 4 M2 screw holes for mounting.
• Dimensions: 4.1 x 2.4 cm.
• Facilitates data transfer and storage for embedded systems.

Applications:

• Data logging systems.
• Audio and video storage projects.
• Graphics display and storage applications.
• Embedded systems requiring expandable memory.
• DIY electronics projects utilizing microcontrollers.

Frequently Asked Questions:

Q: What types of SD cards are compatible with this module?
A: The module supports Micro SD cards up to 2GB and Micro SDHC cards up to 32GB.

Q: What voltage levels does the Micro SD Card Module support?
A: The module supports dual I/O voltages of 3.3V and 5V, with an input power supply range of 4.5V to 5.5V.

Q: What communication interface does the module use?
A: The module utilizes a standard SPI communication interface for connectivity with microcontrollers.

Package Includes:

*Image shown is a representation only.
