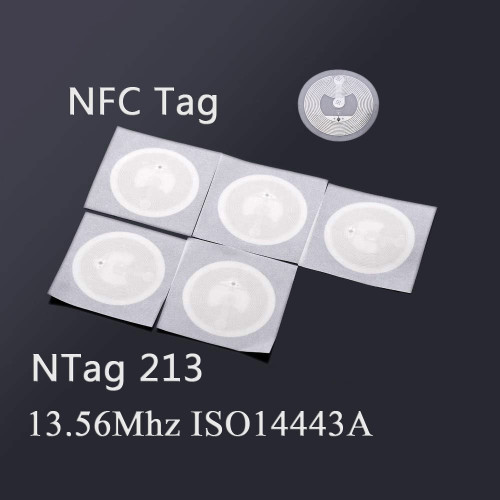

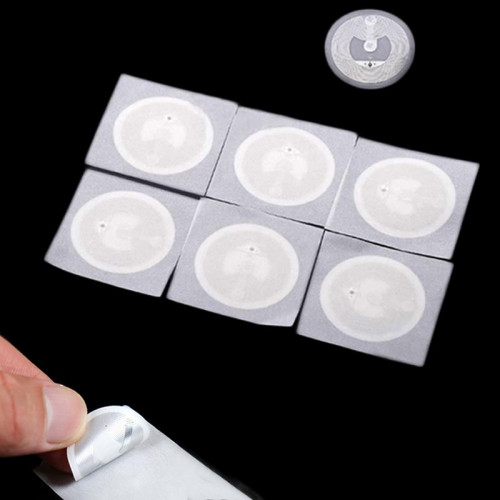

2pcs: NFC Sticker 13.56MHz ISO14443A RFID Tag - Ntag 213 [25mm] - High Quality

2pcs Ntag 213 NFC Sticker 25mm - 13.56MHz ISO14443A RFID Tag

This package contains two Ntag 213 NFC Stickers, each with a 25mm diameter. They operate at 13.56MHz, adhering to the ISO14443A RFID protocol. Data transfer occurs via tapping an NFC-enabled device against the sticker. Each tag integrates an NXP NTAG213 chip. This chip provides 144 bytes of usable memory. The self-adhesive design supports various integration requirements. These tags are suitable for modern connectivity applications.

Specifications:

• Model: 13.56Mhz NFC tag sticker (Ntag 213)
• Diameter: 25mm
• Frequency: 13.56 MHz
• Protocol: ISO14443A
• Chip: NXP NTAG213
• Usable Capacity: 144 byte
• Material: Self-adhesive + coated paper
• Service Life: 100,000 Rewrite Times, 10 years data storage
• Working Temperature: -20 to 55 degree Celsius
• Installation: Sticker adhesive

Key features and benefits:

• Integrated NXP NTAG213 chip.
• Constructed with self-adhesive coated paper material.
• Compatible with NFC-enabled smartphones (Android, iOS via third-party applications).
• Interoperable with 13.56MHz RFID and NFC IC Reader/Writers.
• Rewritable up to 100,000 cycles.
• 10 years data retention.
• Flexible form factor for diverse surface integration.
• Operational temperature range: -20°C to 55°C.

Applications:

• Mobile payments and check-ins.
• Access control and membership management.
• Product information queries.
• Smart home automation and device pairing.
• Social networking and business card sharing.

Frequently Asked Questions:

Q: What is the usable memory capacity of these NFC stickers?
A: The Ntag 213 chip integrated into these NFC stickers provides 144 bytes of usable memory.

Q: What is the operating frequency and protocol of these NFC tags?
A: These NFC tags operate at a frequency of 13.56 MHz and adhere to the ISO14443A protocol.

Q: Are these NFC stickers compatible with iOS devices?
A: Yes, these NFC stickers are compatible with NFC-enabled iOS devices, typically requiring third-party applications for full functionality.

Package Includes:

*Image shown is a representation only.
