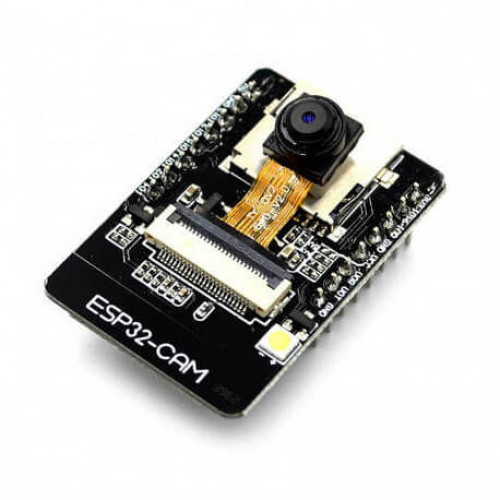

ESP32 CAM WiFi Module Bluetooth - OV2640 Camera Module 2MP (Compatible with Arduino)
OverViewESP32 with 2 MP Camera - Wifi Bluetooth Module IOT Module Board - (High Quality)
ESP32 with 2 MP Camera - Wifi Bluetooth Module IOT Module Board - (High Quality)

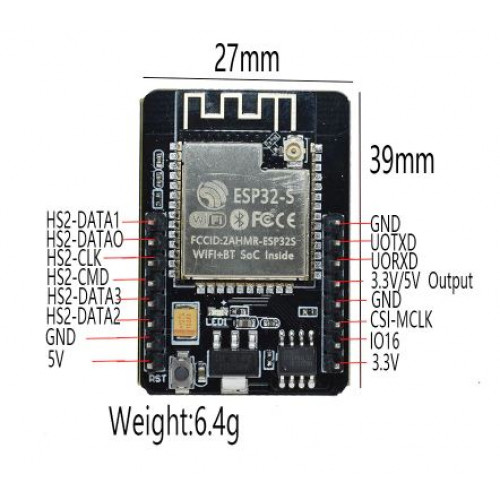

This ESP32 CAM WiFi Module Bluetooth with 2 mega pixel OV2640 Camera Module For Face Recognization and various applications, this board has a very compact small-size camera module, the whole module can operate independently as a compact system with a size of only 40 x 27 mm; a deep sleep current of up to 6mA and is widely used in various IoT applications.
It is suitable for home smart devices, industrial wireless control, wireless monitoring, and other IoT applications.
This module comes with soldered DIP berg pins and can be directly inserted/connected to the backplane for various rapid production of products. It is simple to use and provide users with high-reliability connection options, which extends to support / convenient for application in various IoT hardware terminals.
ESP integrates WiFi, traditional Bluetooth, and BLE Beacon, with 2 high-performance 32-bit LX6 CPUs, 7-stage pipeline architecture. It has the main frequency adjustment range of 80MHz to 240MHz, on-chip sensor, Hall sensor, temperature sensor, etc.
- Voltage (Volt) :5
- Operating Temperature (°C) :-20 ~ 85
- SPI Flash :Default 32Mbit
- RAM :520KB SRAM + 4MB PSRAM
- Bluetooth :Bluetooth 4.2 BR/EDR and BLE standards
- Wi-Fi :802.11 b/g/n/
- UART Baudrate :115200 bps
- Image Output Format :JPEG( OV2640 support only ), BMP, GRAYSCALE
- Spectrum Range :2412 ~2484 MHz
- Shipment Weight :0.082 kg
- Shipment Dimensions :8 × 6 × 2 cm
- Net Weight of shipment package: 0.105 kg
- The smallest 802.11b/g/n Wi-Fi BT SoC module.
- Low power 32-bit CPU, can also serve the application processor.
- Up to 160MHz clock speed, summary computing power up to 600 DMIPS.
- Built-in 520 KB SRAM, external 4MPSRAM.
- Supports UART/SPI/I2C/PWM/ADC/DAC.
- Support OV2640 and OV7670 cameras, built-in flash lamp.
- Support image WiFI upload.
- Supports TF card.
- Supports multiple sleep modes.
- Embedded LWIP and Free RTOS.
- Supports STA/AP/STA+AP operation mode.
- Support Smart Config/AirKiss technology.
- Support for serial port local and remote firmware upgrades (FOTA).
- Ready to connect wifi network applications
- Transfer out data / information from other application without wire
- Face recognization applications

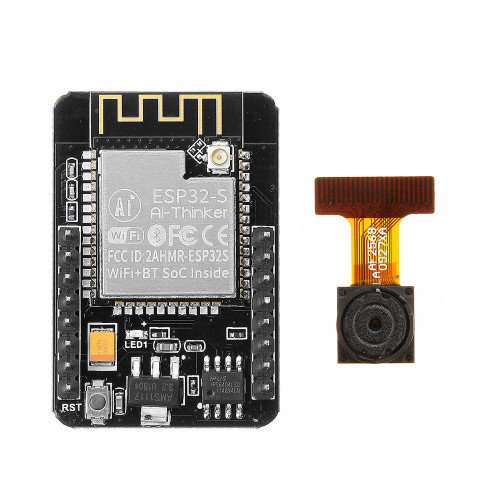

1 x ESP32 CAM WiFi Module.
1 x OV2640 Camera Module 2MP.
*Image shown is a representation only.
