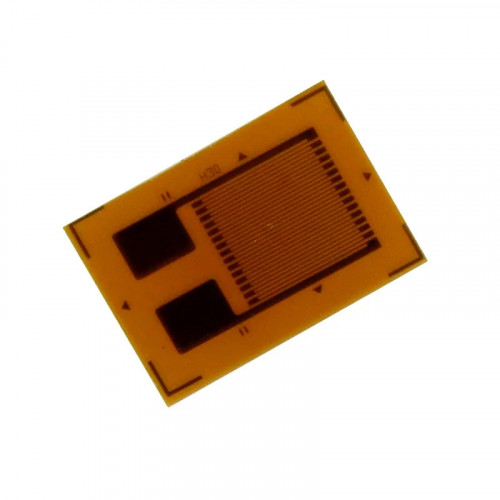

BF350 High Precision Resistance Strain Gauge / Pressure Sensor / Weighing Sensor 350 Ohm

BF350 High Precision Resistance Strain Gauge / Pressure Sensor 350 Ohm

The BF350 is a cutting-edge high-precision resistance strain gauge designed for demanding measurement applications. This foil metal strain gauge offers exceptional accuracy, making it an ideal choice for engineers and hobbyists alike. It is widely utilized in the development of highly sensitive pressure sensors and precise weighing sensors. Engineered for 0.02 level manufacturing crafts, the BF350 ensures minimal output deviation, guaranteeing superior measurement reliability. Its robust design allows for direct measurement of component strain, providing critical data for structural analysis and product development. Experience unparalleled stability and consistent performance across various operational conditions. This sensor integrates advanced features like automatic temperature and creep compensation, ensuring data integrity. Whether for industrial applications or intricate research projects, the BF350 delivers the precision you need.

Specifications:

• Technical Indexes: BF series
• Strain Limit: 2.0%
• Fatigue Life: ≥1M
• Resistance: 350 ohms
• Sensitivity Coefficient: 2.00-2.20
• Using Temperature Range: -30°C to +80°C
• Tolerance of Average Resistance: ≤±0.1%
• Sensitive Coefficient Dispersion: ≤±1%
• Temperature Self Compensation Coefficient: 9, 11, 16, 23, 27

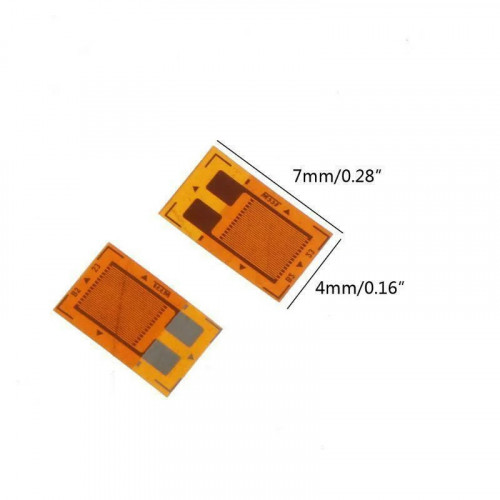

• Size: 7.4mm (length) x 4.4mm (width)

Key features and benefits:

• High accuracy for precise resistance data acquisition
• Exceptional stability ensuring reliable and consistent performance
• Constructed with modified phenolic backing and Cuni gate wire for durability
• Fully-closed structure enhances data transmission safety and sensor protection
• Automatic compensation for temperature fluctuations and material creep
• Designed for 0.02 level precision in sensor manufacturing
• Foil metal strain gauge technology for robust measurements

Applications:

• High-precision pressure sensor manufacturing
• Accurate weighing sensor systems
• Direct measurement of mechanical strain on components
• Structural health monitoring and material testing
• Industrial automation and control systems
• Research and development in electronics and mechanics

Package Includes:

*Image shown is a representation only.
