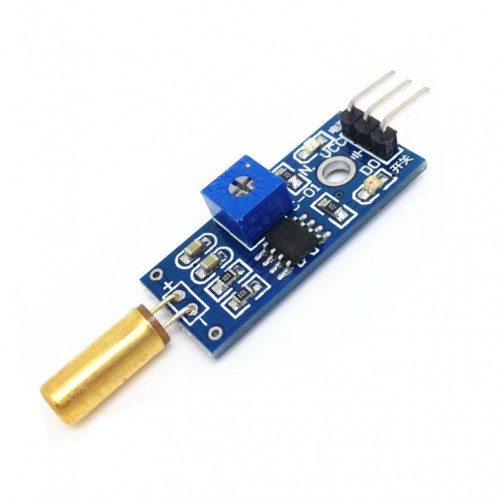

Tilt Sensor Module Board (Vibration Sensor) - [Compatible with Arduino]

Tilt Sensor Module Board (Vibration Sensor) - Arduino Compatible

The Tilt Sensor Module Board detects object orientation, tilt, and vibration. It integrates with Arduino and various microcontrollers. The module provides a digital output and an integrated LED for status indication. Operation occurs within a 3.3V to 5V supply range. Installation requires minimal external components. The design supports consistent performance. This module is suitable for electronics and automation projects requiring tilt or vibration sensing.

Specifications:

• Operating Voltage Range: 3.3V to 5V
• Maximum Output Current: 15mA
• Conductive Time: 2ms
• Operating Temperature: 0℃ to +80℃

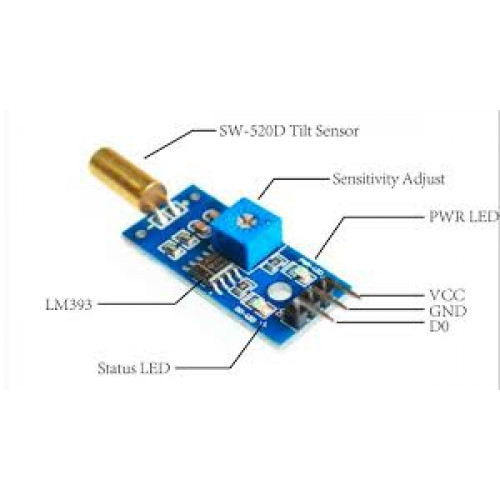

• VCC Pin Function: External 3.3V-5V power supply
• GND Pin Function: External Ground connection
• DO Pin Function: Digital output interface (connects to MCU IO)

Key features and benefits:

• Compact form factor for integration
• Digital output for data processing
• Integrated LED for switch status indication
• Operates on 3.3V to 5V supply
• Interfacing with Arduino and microcontrollers
• Designed for extended operational lifespan

Applications:

• Vibration and movement activation
• Platform stability monitoring
• Object orientation and tilt detection
• General testing and detection equipment

Frequently Asked Questions:

Q: What is the operating voltage range for this module?
A: The module operates within a 3.3V to 5V DC supply range.

Q: Is this module compatible with 3.3V microcontrollers?
A: Yes, the module is compatible with both 3.3V and 5V microcontrollers, operating from 3.3V to 5V.

Q: What type of output does this sensor provide?
A: The sensor provides a digital output signal.

Q: How is the module connected to a microcontroller?
A: Connect VCC to power (3.3V-5V), GND to ground, and DO to a microcontroller's digital input (IO) pin.

Q: Does this module require external pull-up or pull-down resistors for the digital output?
A: The module provides a clear digital output; specific external resistor requirements depend on the microcontroller's input impedance and internal pull-ups.

Package Includes:

*Image shown is a representation only.
