MAX7219 Dot Matrix 4 in 1 Display Module with 5p line (Compatible with Arduino)

MAX7219 Dot Matrix 4 in 1 Display Module with 5p line (Compatible with Arduino)

₹345.00 (Excluding 18% GST)
Product Code: SP-MAX7219-4D
Reward Points 8
Availability: In Stock

OverView

MAX7219 Dot Matrix 4 in 1 Display Module with 5p line  - (High Quality)
International Shipping starts from 13 USD: DHL / Fedex (3-7 days priority delivery)

Product Description

MAX7219 Dot Matrix 4 in 1 Display Module with 5p line  - (High Quality)

Description:

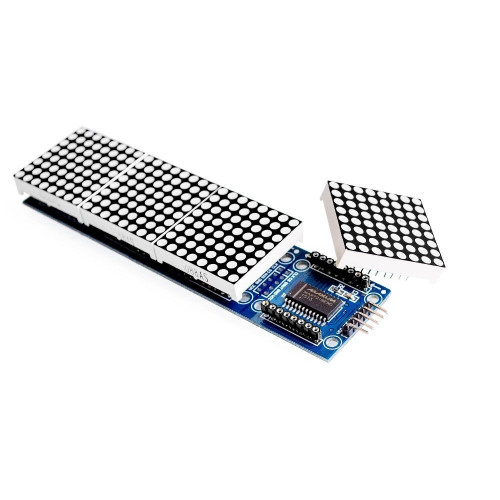

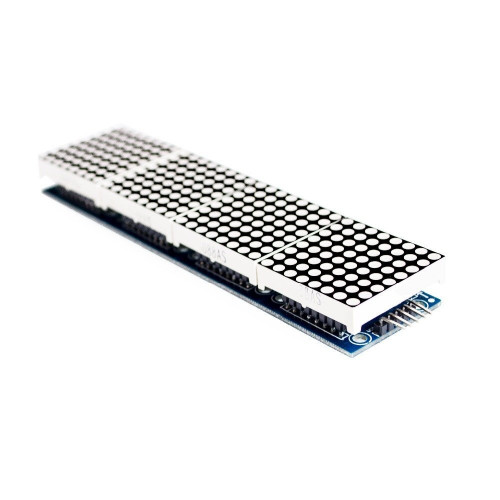

MAX7219 4-in-1 Display Dot Matrix Module is an integrated serial input/output common-cathode display driver, it connects the microprocessor 7-segment digital LED display with 8 digits, you can also connect a bar graph display or 64 independent LED. Thereon including a B-type BCD encoder chip, multi-channel scanning loop segment word driver, but also a static RAM 8 x 8 for storing each data. Only one external register is used to set the segment current of each LED.

The MAX7219 Dot Led Matrix Module is a serial input common-cathode driver that interfaces micro-controllers to LED matrices. All common micro-controllers can be connected to this module by using a 4-wire serial interface. Each output can be addressed without refreshing the entire display. This module requires only 3 I/O lines for driving the display, making it ideal for your microcontroller projects. Only one external register is used to set the segment current of each LED.

Feature

  • Requires only 3 communication wires of MCU
  • Pre-cascaded MAX7219 Dot Matrix LED Module.
  • The overall size of the display is very compact
  • The PCB features M3 holes for mounting.
  • Module with input and output interfaces
  • Support for cascading multiple modules
  • Quite large display

Specifications

  • Driver IC         :MAX7219
  • Input Voltage (V) :5
  • Max. Operating Current (mA) :320
  • LED Color                      :Red
  • LED Display Dim. (mm)    :32x32x6 (LxWxH)
  • PCB Size ( L x W ) mm      :128 x 32

Pin Connection

(Dot LED Module to the Arduino)

  • Vcc      –     5V
  • GND   –    GND
  • DIN    –    Pin 12
  • CS       –    Pin 10
  • CLK    –    Pin 11


Package includes:

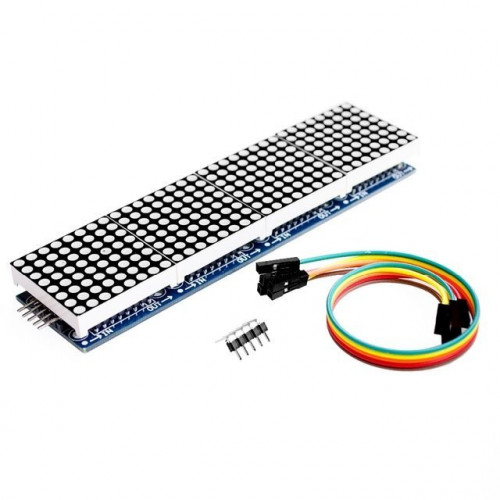

1 x MAX7219 Dot Matrix 4 in 1 Display Module with 5p line

*Image shown is a representation only.
