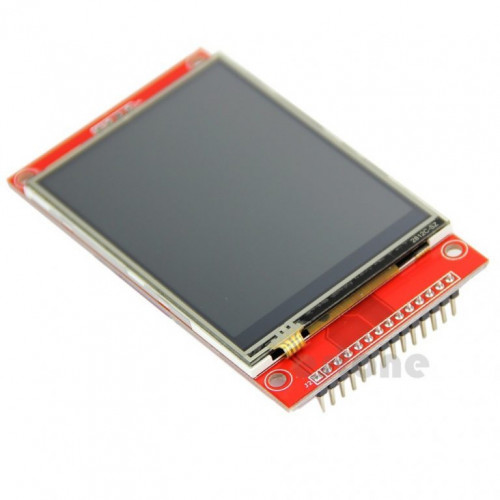

2.8 inch SPI Touch Screen Module TFT Interface 240*320 with Stylus pen

2.8 inch SPI TFT Touch Screen Module 240x320 with Stylus Pen

This 2.8 inch SPI TFT Touch Screen Module features a 240x320 pixel resolution. It includes an integrated resistive touchscreen and a stylus pen. A built-in controller with RAM buffering manages display operations. The module supports both 8-bit parallel and 5-pin SPI interface modes. It is 3-5V compliant, incorporating high-speed level shifters. Compatibility with microcontrollers such as Arduino is supported. An onboard MicroSD card socket facilitates image display. This module provides a display solution for electronic designs.

Specifications:

• Display Size: 2.8 inch
• Resolution: 240x320 pixels
• Display Type: TFT
• Interface Modes: 8-bit Parallel, 5-pin SPI
• Touchscreen Type: Resistive
• Operating Voltage: 3-5V
• Controller: Integrated with RAM buffering
• Level Shifters: High-speed, onboard

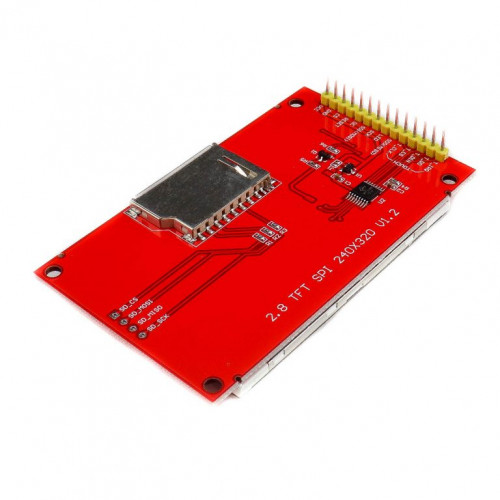

• Storage: Onboard MicroSD card socket

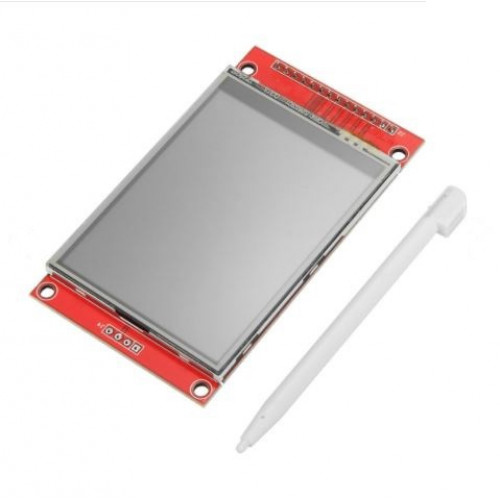

• Included Accessory: Stylus pen

Key features and benefits:

• 2.8 inch TFT display with 240x320 pixel resolution.
• Integrated resistive touchscreen for user input.
• Supports both 8-bit parallel and 5-pin SPI interface modes.
• Built-in display controller with RAM buffering.
• 3-5V operating voltage compliance via high-speed level shifters.
• Onboard MicroSD card socket for image storage and display.
• Includes a stylus pen for touchscreen interaction.
• Compatible with various microcontrollers, including Arduino platforms.

Applications:

• Embedded system graphical user interfaces (GUIs).
• IoT device control and monitoring panels.
• Portable electronic instrumentation.
• Educational and prototyping projects.
• Industrial human-machine interfaces (HMIs).

Frequently Asked Questions:

Q: What microcontrollers are compatible with this module?
A: This module is compatible with 3-5V microcontrollers, including Arduino platforms, due to its integrated high-speed level shifters.

Q: What interface modes does this module support?
A: The module supports both 8-bit parallel and 5-pin SPI interface modes for connectivity with microcontrollers.

Q: Does the module require external memory for image display?
A: No, an onboard MicroSD card socket is included for direct image storage and display, especially useful for SPI users.

Package Includes:

*Image shown is a representation only.
