HC-SR505 Mini PIR Motion Sensor Infrared Detector Module [High Quality]

HC-SR505 Mini PIR Motion Sensor Infrared Detector Module

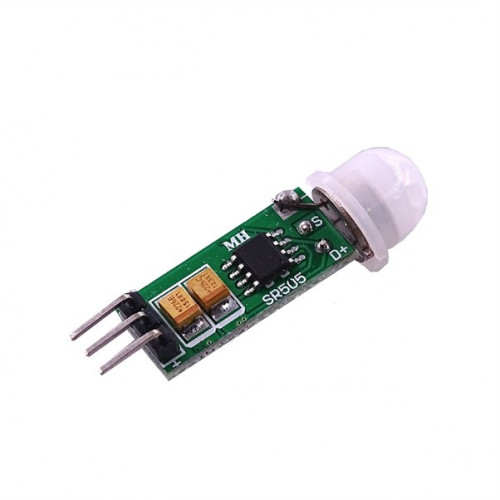

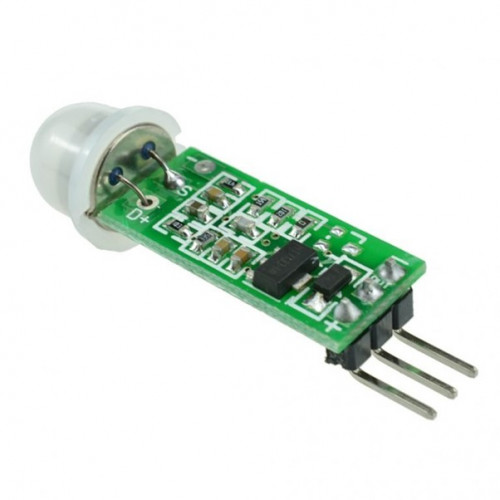

The HC-SR505 Mini PIR Motion Sensor is an infrared detector module. It performs motion detection. The module's compact size facilitates integration into space-constrained designs. It operates with ultra-low power consumption. This supports use in battery-powered systems. The sensor detects human presence and generates outputs. Repeatable trigger functionality maintains continuous detection. It provides a 3.3V high or 0V low output level. The detection range is 10 cm to 300 cm.

Specifications:

• Operating Voltage: DC 4.5V - 20V
• Quiescent Current: < 50µA
• Detection Range: 10 cm - 300 cm
• Output Level: High 3.3V / Low 0V
• Default Delay Time: 8 seconds (±30%)
• Operating Temperature: -20°C to 80°C
• Induction Angle: < 100-degree cone
• Dimensions (LxWxH): 23mm x 10mm x 5mm
• Weight: 10g

Key features and benefits:

• Ultra-low quiescent current: < 50µA
• Compact dimensions: 23mm x 10mm x 5mm
• Infrared detection capability
• Operating voltage range: DC 4.5V-20V
• Repeatable trigger mode
• Automatic induction with 3.3V high / 0V low output

Applications:

• Body induction lamps and automated lighting systems
• Security systems and motion-activated alarms
• Battery-powered automatic control products
• Smart home automation and IoT device integration
• Industrial automation and equipment sensing

Frequently Asked Questions:

Q: What is the required operating voltage range for the HC-SR505 module?
A: The module operates within a DC voltage range of 4.5V to 20V.

Q: Is the detection delay time adjustable on the HC-SR505?
A: The default delay time is fixed at 8 seconds (±30%). The module does not provide external adjustment for this parameter.

Q: What type of output signal does the HC-SR505 provide?
A: The module provides a digital output, either High (3.3V) or Low (0V), indicating motion detection.

Package Includes:

*Image shown is a representation only.
