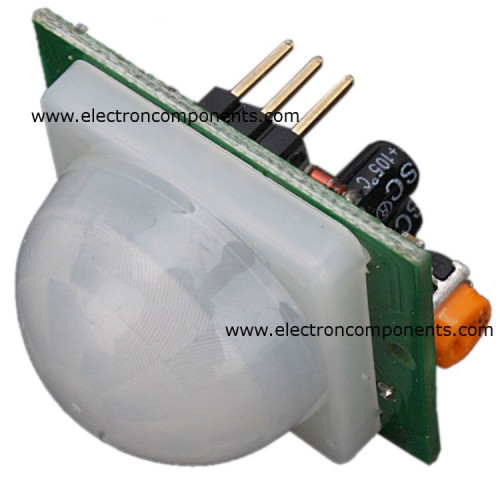

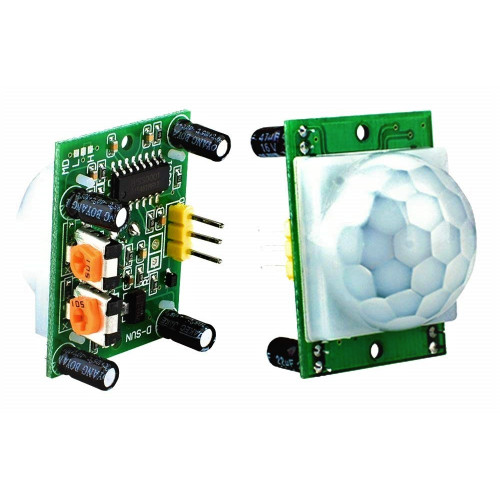

PIR Motion Sensor Module [High Quality]
- Product Code: MSP-PIR_module
- Availability: In Stock
-
₹75.00 (+ GST)
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
PIR Motion Sensor Module [Original]
High sensitive passive infrared motion sensor with stable digital output.
Features/Specifications
- Operating voltage: DC5V to 20V
- Static power consumption: 65 microamps
- level output: high-3.3V, low-0V
- Delay Time: adjustable (0.3 seconds to 18 seconds)
- Embargo time: 0.2 seconds
- Trigger: L can not be repeated, H can be repeated, the default value of H
- Sensing range: less than 120 degrees angle, 7 meters
- Operating temperature: -15 ~ +70 degrees
- PCB Dimensions: 32 * 24mm, the screw hole distance 28mm, screw diameter 2mm, sensor lens size: (diameter): 23mm
*Image shown is a representation only.
