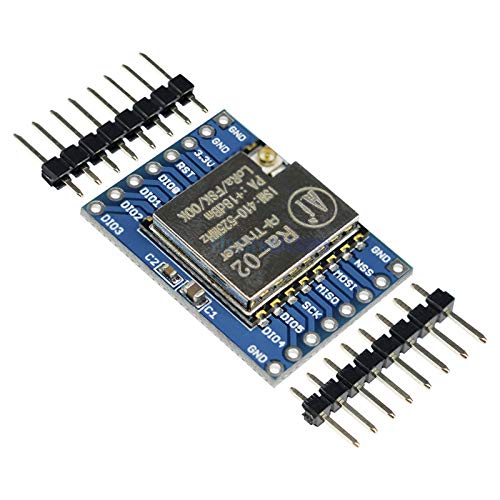

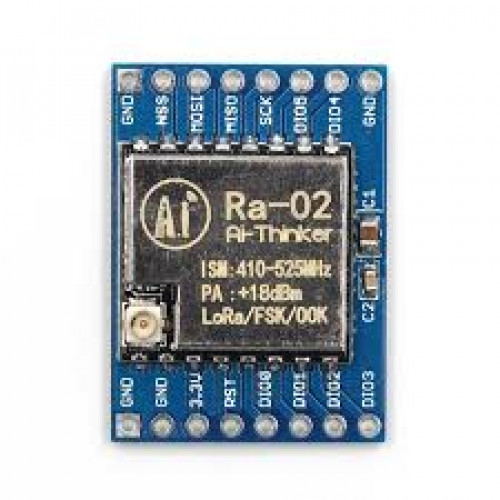

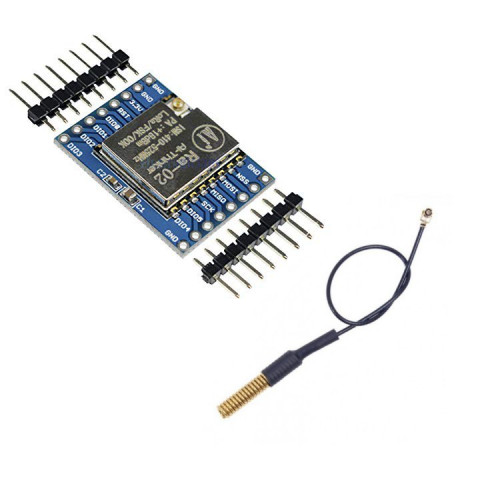

RA-02 LoRa Wireless Transceiver Module with 433 Mhz Antenna
- Product Code: WR-RF_RA02
- Availability: Out Of Stock
-
₹550.00 (+ GST)
Out of Stock
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
RA-02 LoRa Wireless Transceiver Module with 433 Mhz Antenna
Description
Ra-02 is a wireless transmission module based on SEMTECH SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication long distance. It has strong anti-jamming ability and has the function of air-alarm clock-up Consumption. can be covering thousands of people in the neighborhood environment, especially suitable for reading counters, smart home, alarm equipment.
The LoRa series module Ra-01 is designed and developed by AI-THINKER Technology. The SX1278 RF module is mainly used for long-range spread spectrum communication. It can withstand Minimize power consumption. Thanks to SEMTECH's patented LoRa ™ modulation technology, the SX1278 has a high sensitivity of -148 dBm with a power of + 20 dBm, a long transmission distance and high reliability. At the same time, compared to the traditional modulation technology, LoRa ™ modulation technology has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme can not consider the distance, interference and power consumption at the same time.
Specification & Feature:
- LoRa spread spectrum communication
- +20dBm - 10mW. Stable RF output power when input voltage changed
- Half-duplex SPI communication
- Programmable bit rate can reach to 300kbps
- Support FSK, GFSK, MSK, GMSK, LoRaTM, and OOK Modulation Mode
- 127dB RSSI wave range.
- Automatically detect RF signal, CAD mode, and super high-speed AFC
- With CRC 256 bytes data engine
- Half hole (castellated hole) SMD package
- With metal shielding case

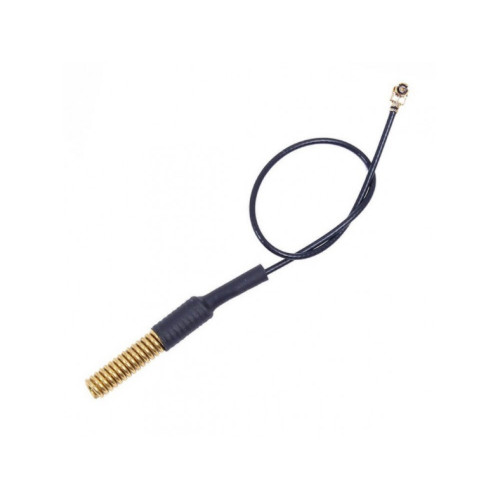

- Spring antenna
- Pin pitch: 0.1 inch
- Specifications
- Wireless Standard: 433MHz
- Frequency range: 420 - 450MHz
- Interface: SPI
- Operating Voltage: 3.3V
- Dimension: 23mm x 18mm (excluding antenna)
- Arduino Library and Sample Code
- Please email pier.electronics@gmail.com for Arduino library and sample code for this module.
*Image shown is a representation only.
Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
