RF Transmitter & Receiver Wireless module - 433 MHz (ASK)
- Product Code: WR-RF_Tx_Rx_433
- Availability: In Stock
- ₹150.00
-
₹97.00 (+ GST)
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)

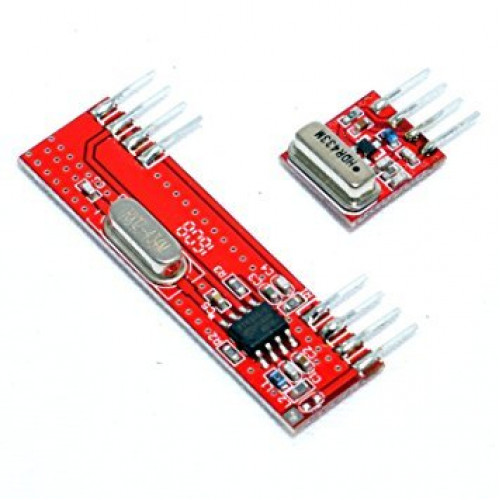

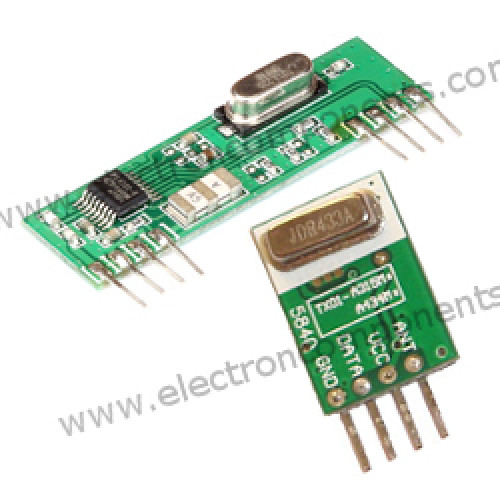

RF Transmitter & Reciever - 433Mhz (ASK)
Transmitter
This is an ideal for remote control applications where low cost and longer range is required. The transmitter operates from a 3-12V supply, making it ideal for battery-powered applications. The transmitter employs a SAW-stabilized oscillator, ensuring accurate frequency control for best range performance.
Range of transmitter is approx 100 meters.
RF Transmitter 433Mhz ASK Features:
- Range in open space(Standard Conditions) : 100 Meters
- TX Frequency Range : 433.92 MHz
- TX Supply Voltage : 3V ~ 6V
- TX Out Put Power : 4 ~ 12 Dbm
Receiver
This is an Hybrid 433Mhz RF receiver module and is ideal for short-range wireless control applications where quality is a primary concern. The receiver module requires no external RF components except for the antenna. The super-regenerative design exhibits exceptional sensitivity at a very low cost.
RF Receiver 433Mhz ASK Features:
- Range in open space(Standard Conditions) : 100 Meters
- RX Receiver Frequency : 433 MHz
- RX Typical Sensitivity : 105 Dbm
- RX Supply Current : 3.5 mA
- RX IF Frequency : 1MHz
- RX Operating Voltage : 5V
*Image shown is a representation only.
Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
