External High Gain GSM, 2G, 3G, 4G Antenna with 3 Meter Extension Cable

External High Gain GSM 2G 3G 4G Omni-Directional Antenna with 3 Meter Extension Cable

This External High Gain GSM 2G 3G 4G Omni-Directional Antenna provides signal capture from all directions. It ensures reliable links for wireless communication devices. Broad compatibility is maintained across GSM, 2G, 3G, and 4G LTE networks. The antenna supports various cellular operators and FCT devices. A flexible magnetic base facilitates secure placement on iron surfaces. This design supports both indoor and outdoor deployment. A 3-meter RG174 extension cable offers flexible positioning options. The SMA Male connector ensures broad compatibility with RF devices. It operates efficiently within the 800-2100MHz frequency range.

Specifications:

• Connector Type: SMA Male
• Operating Frequency: 800-2100MHz
• Gain: 3dBi
• Input Impedance: 50Ω
• Coaxial Cable: RG174
• VSWR: <1.5
• Radiation: Omnidirectional
• Polarization: Vertical and Horizontal
• Cable Length: 3 Meter
• Cable Diameter: 3mm

Key features and benefits:

• Omni-directional design for signal capture from all directions.
• Compatibility with GSM, 2G, 3G, 4G LTE, CDMA, and WADMA networks.
• Magnetic base for secure indoor/outdoor mounting on iron surfaces.
• Includes a 3-meter RG174 extension cable for positioning flexibility.
• SMA Male connector for broad compatibility with RF devices.
• Operates across an 800-2100MHz frequency range.
• VSWR <1.5 for signal transmission and reception.

Applications:

• Connection to customized GSM boards and modules.
• Signal strength improvement for base phones and FCT devices.
• Performance enhancement for Wi-Fi adapters and wireless routers.
• Connectivity boosting for wireless CCTV cameras, AP WLAN, and STB Modems.
• Use with RF devices requiring an SMA female jack connector.

Frequently Asked Questions:

Q: What network types are supported by this antenna?
A: This antenna supports GSM, 2G, 3G, 4G LTE, CDMA, and WADMA networks.

Q: What is the connector type and cable length?
A: The antenna features an SMA Male connector and includes a 3-meter RG174 extension cable.

Q: Can this antenna be used outdoors?
A: Yes, the magnetic base allows for secure placement on iron surfaces, suitable for both indoor and outdoor use.

Package Includes:

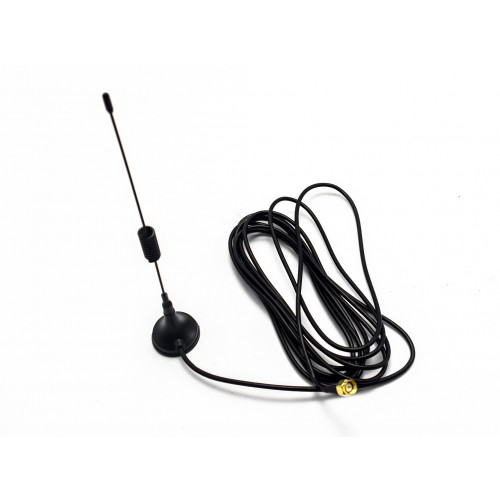

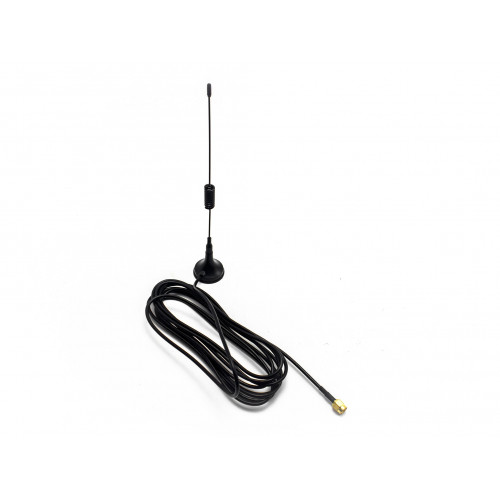

*Image shown is a representation only.
