4pcs: DB107S (IC) - 1A Diode Bridge, DIP IC Bridge Rectifier

DB107S 1A 1000V DIP Diode Bridge Rectifier IC - 4 Pack

The DB107S is a highly reliable 1A Diode Bridge Rectifier, perfect for efficient AC to DC power conversion. This robust IC component comes in a through-hole DIP package, ensuring easy integration into various circuit boards. It delivers stable and consistent performance with a 1 Ampere forward current. An impressive 1000 Volts peak reverse voltage ensures robust operation. Its wide operating temperature range (-55°C to +150°C) suits diverse environmental conditions. A high 50A surge current capability provides added durability against transient spikes. This convenient pack includes four DB107S units, offering excellent value for your electronic projects. It's an essential component for power supplies, battery chargers, and general rectification applications.

Specifications:

• Forward Current (If): 1 A
• Forward Voltage (Vf): 1.1 V
• Peak Reverse Voltage (VRRM): 1000 V
• Max Surge Current (IFSM): 50 A
• Operating Temperature Range: -55°C to +150°C
• Mounting Style: DIP (Through-Hole)
• Reverse Current (Ir): 10 µA
• Reverse Voltage (Vr): 700 V

Key features and benefits:

• 1A Forward Current (If) for efficient power flow
• 1000V Peak Reverse Voltage (VRRM) ensures high voltage tolerance
• DIP Through-Hole mounting for straightforward circuit board integration
• Wide operating temperature range (-55°C to +150°C) for diverse environments
• High 50A Max Surge Current for enhanced durability against spikes
• Low 1.1V Forward Voltage (Vf) minimizes power loss
• Robust IC Bridge Rectifier design for dependable AC to DC conversion

Applications:

• General Purpose AC to DC Power Supplies
• Battery Chargers
• Small Appliance Power Conversion
• Electronic Project Rectification Circuits
• DC Power Adapters and Motor Control

Package Includes:

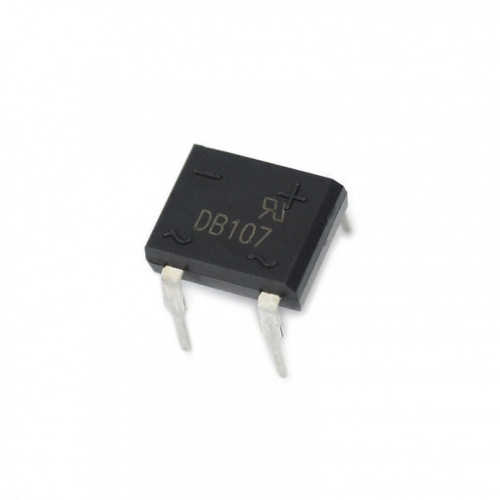

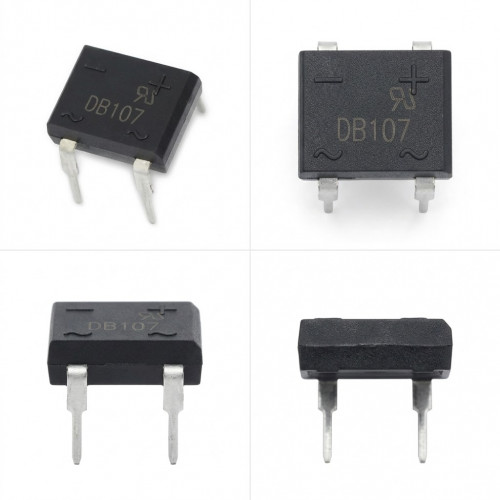

*Image shown is a representation only.
