SMD LNK 304 DG power Integrations - Buck Converter AC/DC switch 85-265 VAC 170mA 8-SOIC (LNK304DG)
- Product Code: ICOA_LNK304DG-SMD
- Availability: In Stock
-
₹50.00 (+ GST)
- 10 or more quantity/sets : ₹49.00
- 25 or more quantity/sets : ₹47.00
- 50 or more quantity/sets : ₹46.50
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
LNK304DG Power Integrations SMD AC/DC Buck Converter IC, 85-265VAC, 170mA, 8-SOIC
The LNK304DG is an SMD AC/DC buck converter integrated circuit from Power Integrations. It replaces linear and capacitor-fed non-isolated power supplies. This monolithic IC integrates a 700V power MOSFET, an oscillator, and On/Off control. The device operates directly from the DRAIN pin, removing the requirement for a bias supply. It supports a universal input voltage range of 85-265VAC. The IC provides an output current of 170mA. Built-in auto-restart, current limit, and thermal shutdown mechanisms provide fault protection. Its compact 8-SOIC package is suitable for space-constrained applications.
Specifications:
- Model: LNK304DG
- Manufacturer: Power Integrations
- Series: LinkSwitch-TN
- Type: AC/DC-Offline (Non-Isolated) Buck Converter
- Topology: Buck, Buck-Boost, Flyback
- Mounting Form: 8-SOIC
- Input Voltage Range: 85 - 265 VAC
- Output Current: 0.17 A (170mA)
- Integrated MOSFET Voltage: 700V
- Number of Pins: 7 Pins
- Operating Temperature: -40 to +150 °C
- Switching Frequency: 66 kHz
Key features and benefits:
- Lowest component count buck converter solution
- Supports buck, buck-boost, and flyback topologies
- Excellent line and load regulation performance
- Universal input voltage range (85 to 265VAC)
- Built-in current limit and hysteretic thermal protection
- Higher efficiency and power factor than passive/capacitor-fed solutions
- Integrated 700V power MOSFET and On/Off control
Applications:
- Replacing linear and capacitor-fed non-isolated power supplies
- Compact AC/DC power conversion in consumer electronics
- Small appliance power supplies
- Industrial control systems requiring efficient power management
- LED lighting drivers
- Standby power supplies
Frequently Asked Questions:
Q: What is the package type for the LNK304DG?
A: The LNK304DG is supplied in an 8-SOIC (Small Outline Integrated Circuit) package.
Q: What input voltage range does this buck converter support?
A: The LNK304DG supports a universal input voltage range from 85VAC to 265VAC.
Q: What is the maximum output current for the LNK304DG?
A: This LNK304DG configuration provides an output current of 170mA (0.17A).
Q: Can the LNK304DG replace linear power supplies?
A: Yes, the LNK304DG is designed to replace less efficient linear and capacitor-fed non-isolated power supplies.
Q: Does this IC include internal fault protection?
A: Yes, it includes built-in auto-restart, current limit, and thermal shutdown features.
Package Includes:

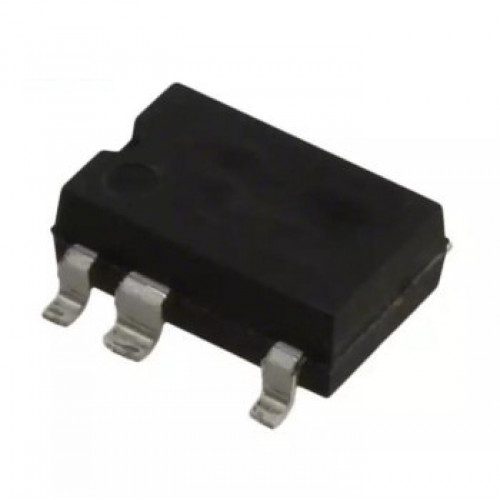

1x SMD LNK304DG Power Integrations Buck Converter IC.*Image shown is a representation only.
Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
