LNK 606 PG power Integrations - AC/DC Converters 85-265 VAC 5.5W LinkSwitch I OCP 8DIP-7 (LNK606PG)
- Product Code: ICOA_LNK606PG
- Availability: Out Of Stock
-
₹47.00 (+ GST)
- 10 or more quantity/sets : ₹46.00
- 25 or more quantity/sets : ₹45.00
- 50 or more quantity/sets : ₹44.00
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
LNK606PG Power Integrations LinkSwitch-II AC/DC Converter
The LNK606PG Power Integrations LinkSwitch-II is an AC/DC converter for low-power CV/CC charger designs. It eliminates the need for an optocoupler and secondary control circuitry. The device employs a control technique for tight output voltage and current regulation. It compensates for transformer, internal parameter tolerances, and input voltage variations. A 700V power MOSFET is integrated within this monolithic IC. Features include an ON/OFF control state machine, a high-voltage switched current source for self-biasing, and frequency jittering. Protection features include cycle-by-cycle current limit and hysteretic thermal shutdown. The LNK606PG provides reliable and efficient performance.
Specifications:
- Model: LNK606PG
- Type: AC/DC-Offline Converter
- Mounting Form: DIP-8B-7
- Input Voltage Range: 85 - 265 VAC
- Output Power: 6.1W
- Number of Pins: 7
- Operating Temperature: -40 to +150 °C
- Switching Frequency: 66 kHz
Key features and benefits:
- Auto-restart protection reduces power delivered by >95% for output short-circuit and control loop faults.
- Hysteretic thermal shutdown with automatic recovery.
- Meets high-voltage creepage requirements between DRAIN and all other pins.
- Compensates for transformer inductance tolerances.
- Compensates for input line voltage variations.
- Compensates for external component temperature variations.
- Tight IC parameter tolerances achieved through proprietary trimming technology.
Applications:
- Mobile phone and tablet chargers
- Small appliance power supplies
- Auxiliary power supplies for various electronics
- Standby power solutions
- USB power delivery systems
Frequently Asked Questions:
Q: What is the input voltage range for the LNK606PG?
A: The LNK606PG operates with an input voltage range of 85 VAC to 265 VAC.
Q: What is the output power capability of the LNK606PG?
A: The LNK606PG provides an output power of 6.1W.
Q: Does the LNK606PG require an optocoupler for operation?
A: No, the LNK606PG is designed to eliminate the need for an optocoupler and secondary control circuitry.
Package Includes:

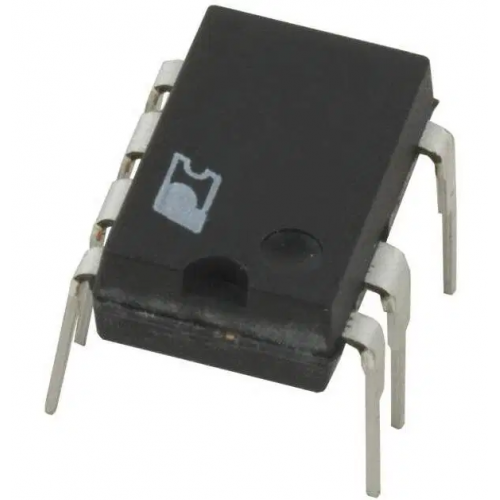

1 x LNK606PG Power Integrations AC/DC Converter.*Image shown is a representation only.
