LNK 604 PG power Integrations - AC/DC Converters 85-265 VAC 3.5W LinkSwitch I OCP 8DIP-7 (LNK604PG)
- Product Code: ICOA_LNK604PG
- Availability: Out Of Stock
-
₹39.00 (+ GST)
- 10 or more quantity/sets : ₹37.00
- 25 or more quantity/sets : ₹36.00
- 50 or more quantity/sets : ₹35.50
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
LNK604PG Power Integrations LinkSwitch-II AC/DC Converter IC, 85-265 VAC, 3.5W, 8DIP-7
The LNK604PG from Power Integrations is an AC/DC converter, part of the LinkSwitch-II family. It simplifies low-power constant voltage/constant current (CV/CC) charger designs. This IC eliminates the need for an optocoupler and secondary control circuitry. It provides tight output voltage and current regulation. The LNK604PG compensates for transformer and internal parameter tolerances, alongside input voltage variations. It integrates a 700V power MOSFET and a high-voltage switched current source for self-biasing. Advanced features include frequency jittering, cycle-by-cycle current limit, and hysteretic thermal shutdown. This monolithic IC delivers efficient power conversion.
Specifications:
- Manufacturer: Power Integrations
- Type: AC/DC-Offline Converter
- Input Voltage Range: 85 - 265 VAC
- Output Power: 3.5W
- Package Type: 8DIP-7
- Number of Pins: 7
- Operating Temperature: -40 to +150 °C
- Switching Frequency: 66 kHz
Key features and benefits:
- Simplifies low-power CV/CC charger designs by eliminating optocoupler and secondary control.
- Provides very tight output voltage and current regulation.
- Integrates a 700V power MOSFET and high-voltage switched current source for self-biasing.
- Features auto-restart protection for output short-circuit and control loop faults.
- Includes hysteretic thermal shutdown with automatic recovery.
- Compensates for transformer inductance, input line voltage, and external component temperature variations.
- Meets high-voltage creepage requirements between DRAIN and other pins.
Applications:
- USB chargers and adapters
- Small appliance auxiliary power supplies
- LED lighting applications
- Standby power for consumer electronics
- Compact power adapters for IoT devices
Frequently Asked Questions:
Q: What is the input voltage range for the LNK604PG?
A: The LNK604PG operates with an input voltage range of 85 - 265 VAC.
Q: What is the maximum output power of this converter?
A: The LNK604PG provides an output power of 3.5W.
Q: What package type is the LNK604PG supplied in?
A: The LNK604PG is supplied in an 8DIP-7 package.
Q: Does this IC require an optocoupler for CV/CC designs?
A: No, the LNK604PG eliminates the need for an optocoupler and secondary control circuitry in CV/CC charger designs.
Q: What is the integrated MOSFET voltage rating?
A: The LNK604PG integrates a 700V power MOSFET.
Package Includes:

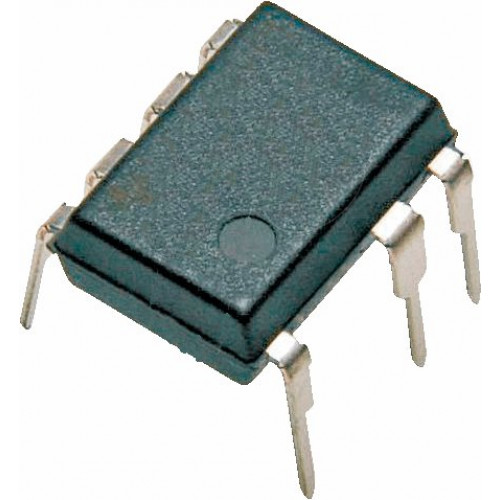

1x LNK604PG Power Integrations AC/DC Converter IC.*Image shown is a representation only.
