2W06M 600V 2A Full Wave Bridge Rectifier (Original)

2W06M 600V 2A Full Wave Bridge Rectifier (Original)

The 2W06M is an original 600V 2A Full Wave Bridge Rectifier. It is designed for AC to DC power conversion. This component handles up to 600V peak reverse voltage. It supports a 2A average forward rectified current. The 2W06M is suitable for power supply units and battery charging circuits. It is also used for general-purpose rectification tasks. Its compact form factor facilitates integration into circuit board layouts. The rectifier provides thermal characteristics and high surge current capability. This component is utilized in power management applications.

Specifications:

• Peak Reverse Voltage (Vrrm): 600V
• Max. RMS Bridge Voltage (Vrms): 460V
• Max. DC Blocking Voltage (Vdc): 600V
• Av. Forward Rectified Current (Io): 2.0A
• Maximum Reverse Current (Ir): 10µA
• Forward Volt Drop per Element (Vf): 1.1V
• Operating Temperature Range: -55°C to +150°C
• Package Type: W06M (Bridge Rectifier)

Key features and benefits:

• Peak Reverse Voltage (Vrrm): 600V
• Average Forward Rectified Current (Io): 2.0A
• Low Forward Voltage Drop
• Thermal performance and heat dissipation
• High surge current capability
• Compact design
• Alternate for W10 Bridge rectifiers
• Original component

Applications:

• General purpose AC/DC power rectification
• Power supply units for consumer electronics
• Battery charging circuits and adapters
• Home appliance control systems
• Industrial automation and control
• DC motor drive circuits

Frequently Asked Questions:

Q: What are the key voltage and current ratings for the 2W06M?
A: The 2W06M features a Peak Reverse Voltage (Vrrm) of 600V and an Average Forward Rectified Current (Io) of 2.0A.

Q: What are common applications for the 2W06M bridge rectifier?
A: Common applications include power supply units, battery charging circuits, and general-purpose AC/DC power rectification.

Package Includes:

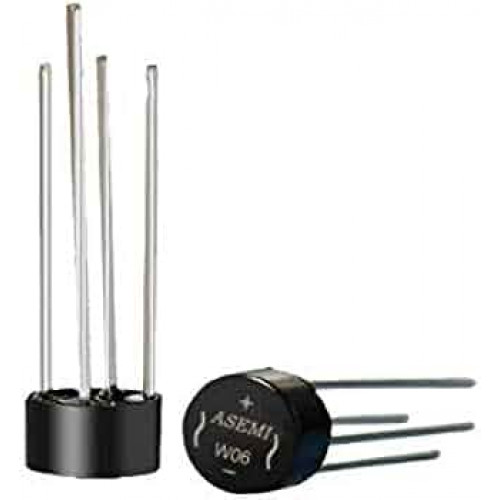

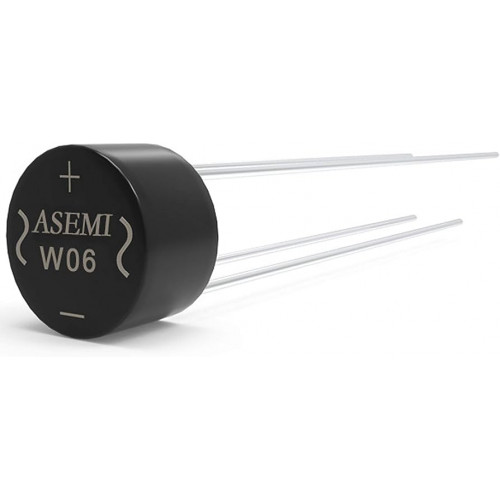

*Image shown is a representation only.
