5pcs: MB10s -Bridge Rectifier 1000V / 0.5 A Surface Mount 1KV SMD - SOIC-4 - Original

MB10s Bridge Rectifier 1000V 0.5A SMD SOIC-4 - 5 Pcs

The MB10S Bridge Rectifier is a component designed for AC-to-DC conversion. This surface mount device (SMD) offers a 0.5 Ampere forward current and a 1000 Volt peak reverse voltage. It is housed in a compact SOIC-4 package. The device features a surge current absorption rated at 35 Amperes IFSM and 5.0 A² Sec I²T. This capability provides reliability against transient power spikes. A breakdown voltage up to 1000V ensures stable operation. Its 35 mm² footprint allows for integration into miniature power supply designs. This package includes 5 original MB10S units.

Specifications:

• Forward Current (If): 0.5 A
• Forward Voltage (Vf): 1.1 V
• Peak Reverse Voltage: 1000 V
• Max Surge Current (IFSM): 35 A
• Reverse Current (Ir): 5 µA
• Mounting Style: SMD/SMT
• Package / Case: SOIC-4 (DBS)
• Minimum Operating Temperature: -55 °C
• Maximum Operating Temperature: +150 °C
• Length: 4.9 mm
• Width: 4.2 mm
• Height: 2.7 mm

Key features and benefits:

• 0.5 Ampere forward current rating
• 1000 Volt peak reverse voltage
• Compact Surface Mount Device (SMD) in SOIC-4 package
• Surge current absorption: 35A IFSM
• I²T rating of 5.0 A² Sec for transient protection
• Operating temperature range: -55 °C to +150 °C
• 35 mm² footprint
• Original component

Applications:

• Compact AC-DC power supplies
• Consumer electronics and portable devices
• LED lighting applications
• Battery charging circuits
• Industrial control and automation systems

Frequently Asked Questions:

Q: What is the primary function of the MB10S Bridge Rectifier?
A: The MB10S Bridge Rectifier converts alternating current (AC) to direct current (DC) in electronic circuits.

Q: What are the key electrical specifications of the MB10S?
A: The MB10S features a 0.5 A forward current, 1000 V peak reverse voltage, and a 35 A maximum surge current (IFSM).

Q: What package type and mounting style does the MB10S utilize?
A: The MB10S is a Surface Mount Device (SMD) housed in a SOIC-4 package.

Package Includes:

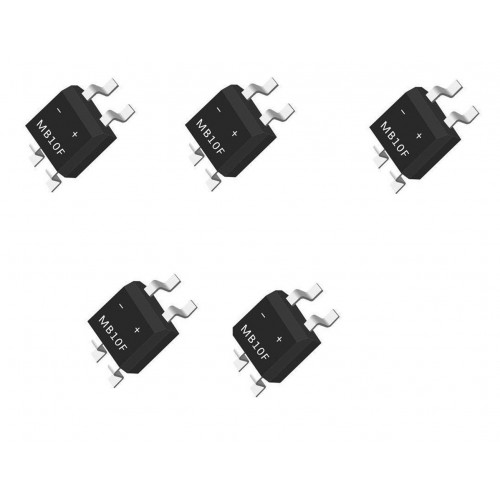

*Image shown is a representation only.

Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
