KBL10 Bridge Rectifier Diode, Single Phase, 1 kV, 4 A, SIP, 1.1 V, 4 Pins [High Quality]

KBL10 Single Phase Bridge Rectifier Diode, 1 kV, 4 A, 4-SIP

The KBL10 Bridge Rectifier Diode facilitates AC to DC power conversion. This single-phase rectifier is rated for a peak reverse voltage of 1 kV and an average rectified current of 4 A. It is supplied in a compact 4-SIP package. The component is designed for secure through-hole mounting on printed circuit boards. High surge current capability is integrated for demanding applications. The KBL10 is UL certified, ensuring compliance. Its construction provides operational reliability. This diode is suitable for general power supply circuits and industrial electronics.

Specifications:

• Diode Type: Single Phase Bridge Rectifier
• Peak Reverse Voltage (VRRM): 1 kV
• Average Rectified Current (Io): 4 A
• Forward Voltage (Vf) @ If: 1.1 V @ 4 A
• Reverse Leakage Current @ Vr: 5 µA @ 1000 V
• Operating Temperature (TJ): -50°C to 150°C
• Mounting Type: Through Hole
• Package / Case: 4-SIP, KBL
• Number of Pins: 4

Key features and benefits:

• Efficient single-phase AC to DC power conversion
• 1 kV peak reverse voltage and 4 A average rectified current
• Compact 4-SIP (KBL) package
• Designed for through-hole mounting on PCBs
• High surge current capability
• UL certified (UL #E326243)
• Cost-effective construction

Applications:

• General purpose power supply circuits
• AC to DC power conversion
• Welding equipment
• Industrial and consumer electronics
• Amplitude detection in modulated radio signals

Frequently Asked Questions:

Q: What is the pinout configuration for the KBL10?
A: The KBL10 typically features two AC input pins and two DC output pins (+ and -) in a standard bridge rectifier configuration.

Q: Can this KBL10 replace a bridge rectifier with a lower voltage rating?
A: Yes, a KBL10 with a 1 kV VRRM can replace lower voltage rated rectifiers, provided current and package requirements are met.

Q: What is the recommended mounting method for the 4-SIP package?
A: The 4-SIP package is designed for through-hole mounting on a printed circuit board.

Q: Is heat sinking required for the KBL10 at 4A?
A: For continuous operation at 4A, heat sinking is generally recommended to maintain the operating temperature within specified limits.

Package Includes:

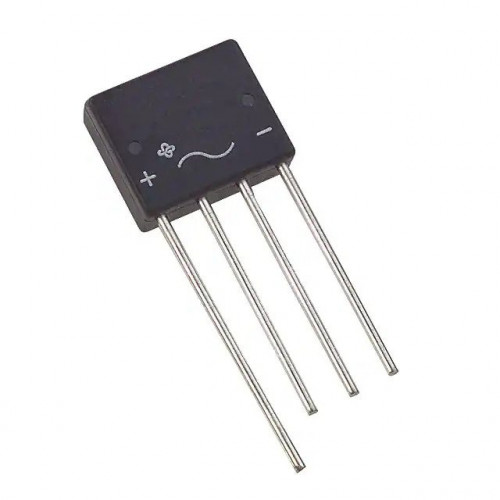

*Image shown is a representation only.
