BR1010 - 10A 1000V Full Wave Bridge Rectifier [High Quality]

BR1010 10A 1000V Full Wave Bridge Rectifier

The BR1010 is a full-wave bridge rectifier. It performs AC to DC power conversion. This component has a 10A continuous forward current capacity. It also features a 1000V maximum repetitive reverse voltage rating. The BR1010 is suitable for electronic circuits and power supply units. Its compact housing supports stable operation under load. This rectifier provides consistent power rectification.

Specifications:

• Rectifier Type: Full Wave Bridge
• Max. Repetitive Reverse Voltage (V_RRM): 1000V
• Max. Average Forward Current (I_O): 10A
• Peak Forward Surge Current: 150A (approx.)
• Operating Temperature Range: -55°C to +150°C
• Package Type: BR-10 or similar molded case

Key features and benefits:

• 10A continuous forward current capacity.
• 1000V maximum repetitive reverse voltage.
• Full-wave rectification for AC to DC conversion.
• Compact design with standard pinout.
• Integrated thermal management.
• Stable operation under load.

Applications:

• AC to DC power supply units.
• Motor control systems.
• Battery charging circuits.
• Industrial and consumer electronics.

Frequently Asked Questions:

Q: What is the pinout configuration for the BR1010 bridge rectifier?
A: The BR1010 typically features a standard four-pin configuration: two AC input terminals, one positive DC output terminal (+), and one negative DC output terminal (-).

Q: Can the BR1010 be used in circuits requiring less than 10A forward current?
A: Yes, the BR1010 can be used in applications requiring less than its 10A maximum average forward current, provided the voltage ratings are met.

Q: What is the recommended operating temperature range for the BR1010?
A: The recommended operating temperature range for the BR1010 is -55°C to +150°C.

Q: Is external heat sinking required for the BR1010?
A: For continuous operation at or near its maximum 10A forward current, external heat sinking is recommended to maintain the operating temperature within specified limits.

Package Includes:

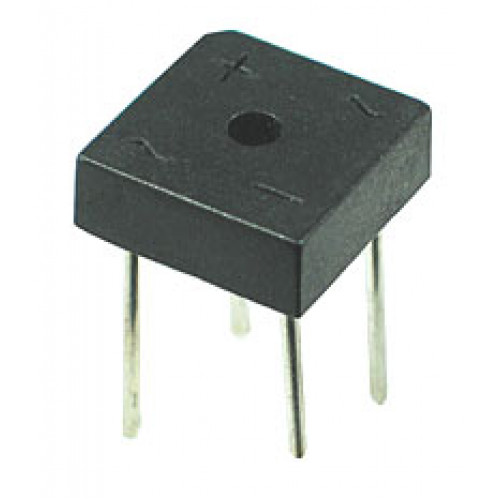

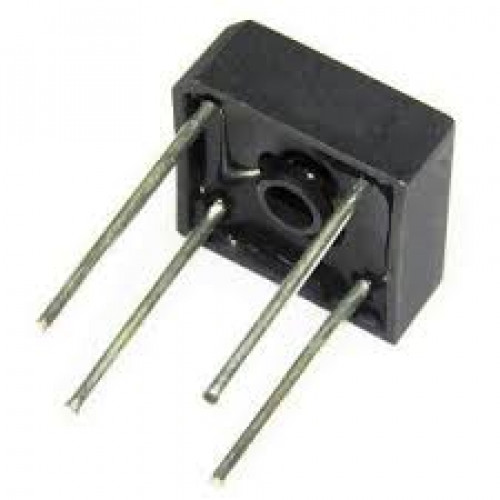

*Image shown is a representation only.
