MB3510 / KB3510 1000V 35A High-Power Bridge Rectifier

The MB3510, also known as KB3510, is a robust single-phase bridge rectifier designed for demanding applications. It efficiently converts alternating current (AC) to stable direct current (DC) power, ideal for high-power systems. This rectifier boasts a 1000V peak reverse voltage and a substantial 35A average forward current, handling significant electrical loads with ease. An exceptional 400A surge current capability provides superior protection against transient voltage spikes. Its low forward voltage drop minimizes energy loss, significantly boosting overall efficiency. The electrically isolated metal case ensures excellent heat dissipation and secure through-hole mounting. Universal terminals allow for flexible integration into various circuit designs. This component delivers stable, consistent performance crucial for demanding electronic projects, including advanced power supplies and motor controllers.

Specifications:

• Maximum Repetitive Peak Reverse Voltage (V_RRM): 1000V
• Average Forward Rectified Output Current (I_O): 35A
• Non-Repetitive Peak Forward Surge Current (I_FSM): 400A
• Forward Voltage Drop per Diode (V_FM): 1.1V at 17.5A
• Thermal Resistance, Junction to Case (R_thJC): 1.6°C/W
• Operating Temperature Range (T_j): -55°C to +150°C
• Mounting Torque: 10 kg·cm
• Package Type: Metal case with through-hole mounting

Key features and benefits:

• High 1000V Peak Reverse Voltage: Ensures robust performance in high-voltage AC-DC conversion.
• 35A Average Forward Current: Capable of handling significant power loads for demanding applications.
• Exceptional 400A Surge Current Capability: Provides superior protection against transient voltage spikes.
• Efficient Power Conversion: Achieves minimal energy loss due to a low forward voltage drop.
• Electrically Isolated Metal Case: Offers enhanced heat dissipation and secure, through-hole mounting.
• Versatile Universal Terminals: Supports snap-on, wire wrap-around, or PCB mounting for flexible integration.
• Wide Operating Temperature Range: Reliable performance from -55°C to +150°C.

Applications:

• High-Power AC-DC Power Supplies
• Battery Charging Systems
• Motor Control Circuits
• Industrial Automation Equipment
• Consumer Electronics & Home Appliances

Package Includes:

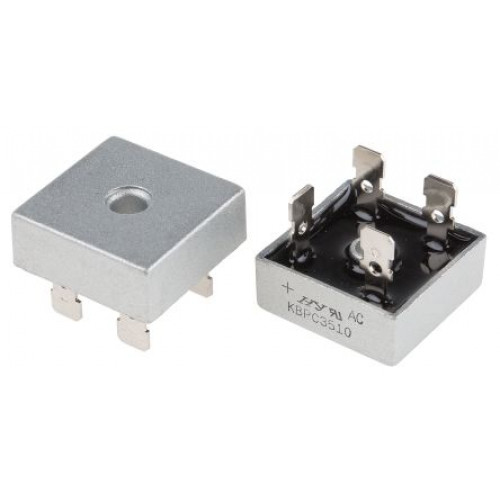

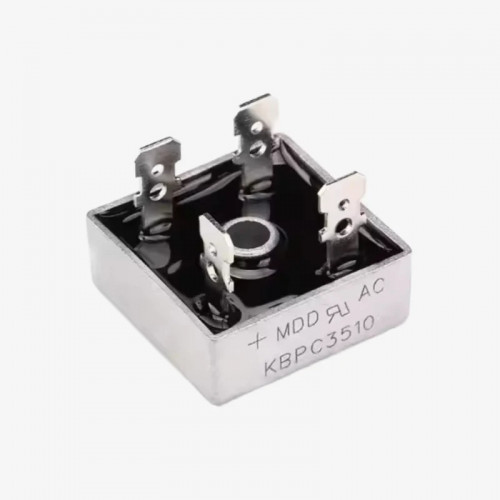

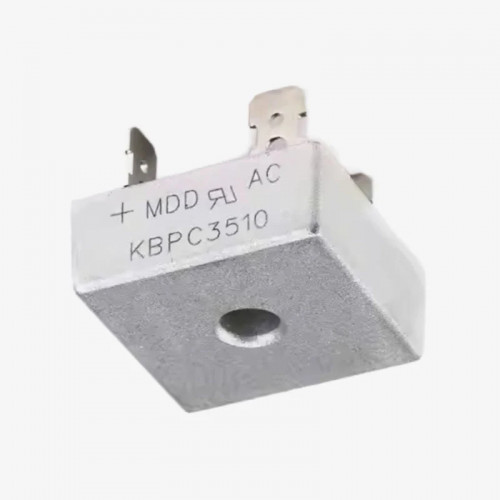

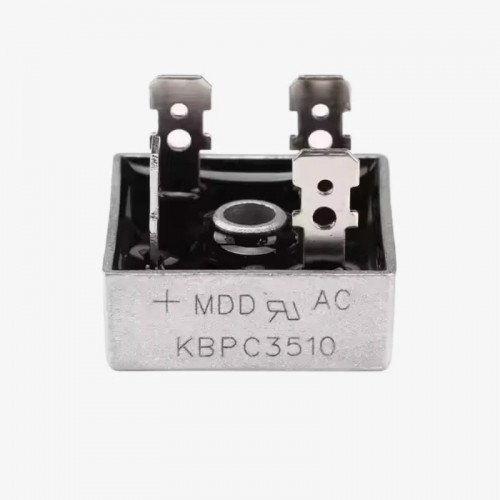

*Image shown is a representation only.
