2W08M 800V 2A [W08] Full Wave Bridge Rectifier [Original]

2W08M 800V 2A W08 Full Wave Bridge Rectifier [Original]

The 2W08M is a full-wave bridge rectifier. It performs AC to DC power conversion. Specifications include an 800V peak reverse voltage and a 2A average forward rectified current. This component is used in power supply circuits for converting alternating current into direct current. Its W08 package is suitable for electronic applications. The 2W08M provides stable power output. It functions as an alternative to the W10 bridge rectifier. This original component meets specified standards.

Specifications:

• Model: 2W08M (W08)
• Type: Full Wave Bridge Rectifier
• Peak Reverse Voltage (Vrrm): 800V
• Max. RMS Bridge Voltage (Vrms): 560V
• Max. DC Blocking Voltage (Vdc): 800V
• Average Forward Rectified Current (Io): 2.0A
• Maximum Reverse Current (Ir): 10µA
• Forward Voltage Drop per Element (Vf): 1.1V
• Operating Temperature Range: -55°C to +150°C
• Package Type: W08

Key features and benefits:

• Peak Reverse Voltage (Vrrm): 800V
• Max. RMS Bridge Voltage (Vrms): 560V
• Max. DC Blocking Voltage (Vdc): 800V
• Average Forward Rectified Current (Io): 2.0A
• Maximum Reverse Current (Ir): 10µA
• Forward Voltage Drop per Element (Vf): 1.1V
• W08 package for integration
• Stable and consistent power conversion

Applications:

• Power supply units (PSUs) and battery chargers
• DC motor control circuits
• General purpose rectification in electronic devices
• Electronic hobby projects and prototyping
• Industrial power conversion systems

Frequently Asked Questions:

Q: Can the 2W08M replace a W10 bridge rectifier?
A: Yes, the 2W08M functions as an alternative to the W10 bridge rectifier.

Q: What is the operating temperature range for the 2W08M?
A: The operating temperature range is -55°C to +150°C.

Q: What is the maximum average forward current for this rectifier?
A: The average forward rectified current (Io) is 2.0A.

Package Includes:

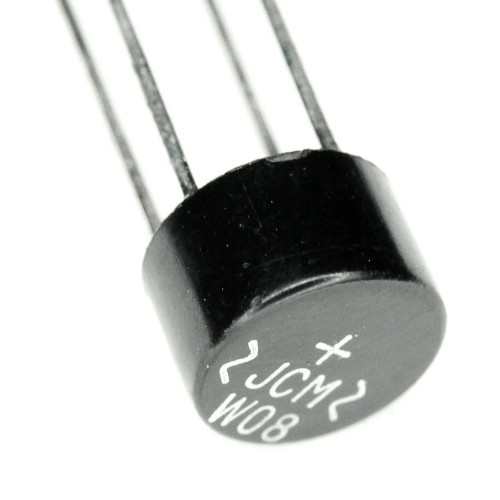

*Image shown is a representation only.
