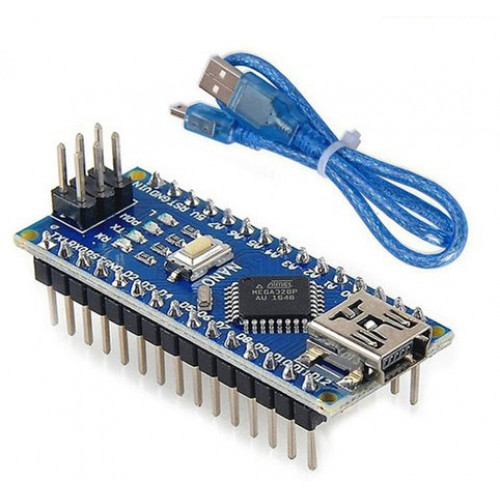

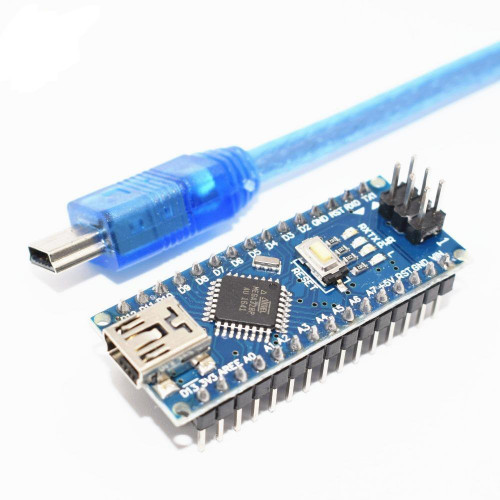

Arduino NANO (Pre-Soldered pins) R3 / V3.0 Development Board - Clone Compatible module (High Quality)
- Product Code: TAP_AU_328_Nano
- Availability: In Stock
-
₹248.00 (+ GST)
- 25 or more quantity/sets : ₹245.00
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
Arduino NANO Module 3.0 board - Atmega 328P smd
Atmega 328 SMD micro-controller used open source embedded development board an opensource smallest module board. Surface mount board which is compatible with breadboard (breadboard friendly), integrated with mini USB port. DC power can be given through mini USB cable. It will automatically sense and switch to higher potential source of power, so no need to select power using jumper.
Includes: 1 x Arduino Nano board with pre-soldered pins
Technical Specification
Microcontroller | ATmega328 SMD |
Operating Voltage | 5V |
Supply Voltage (recommended) | 7-12V |
Maximum supply voltage (not recommended) | 20V |
Digital I/O Pins | 14 (of which 6 provide PWM output) |
Analog Input Pins | 6 |
DC Current per I/O Pin | 40 mA |
DC Current for 3.3V Pin | 50 mA |
Flash Memory | 32 KB (ATmega328) of which 0.5 KB used by bootloader |
SRAM | 2 KB (ATmega328) |
EEPROM | 1 KB (ATmega328) |
Clock Speed | 16 MHz |
Package Includes : 1 x Arduino NANO (Pre-Soldered pins) R3 / V3.0 Development Board - Clone Compatible module (High Quality)
Note: USB cable not included (please purchase separately)
*Image shown is a representation only.
Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
