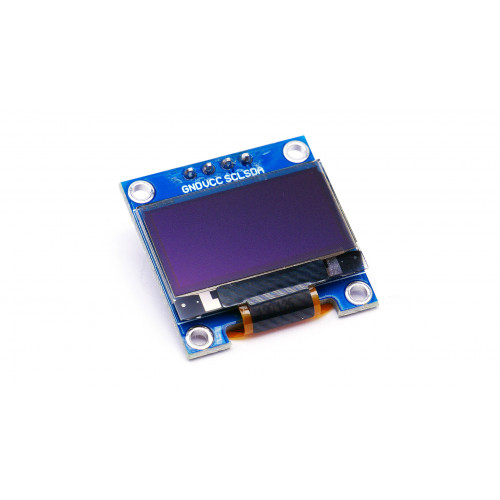

0.96" OLED Display 128x64 Display Module 4 pin (Blue) -I2C - SPI Serial Interface

OLED Display - mini 0.9" - 4 pin Module with Serial Interface - (High Quality)

Description:

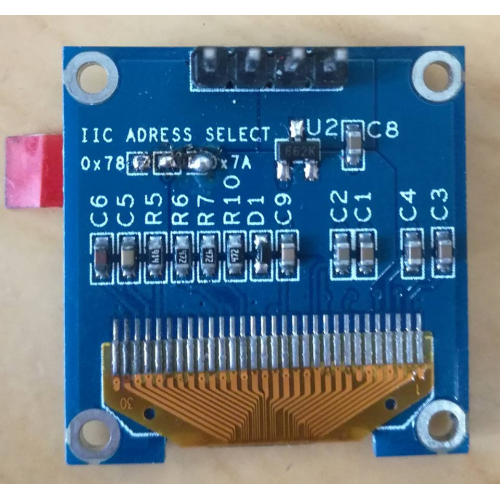

0.9" inch I2C/IIC 128x64 OLED Display Module with 4 Pin is a Mini/small, Blue backlight OLED module which can be interfaced with any microcontroller using I2C/IIC protocol. It is having a resolution of 128x64. The package includes display board, display, 4 pin male header pre-soldered to board.

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

This OLED Display Module is very compact and will add a great ever user interface experience to your Arduino project. The connection of this display with Arduino is made through SPI interface.

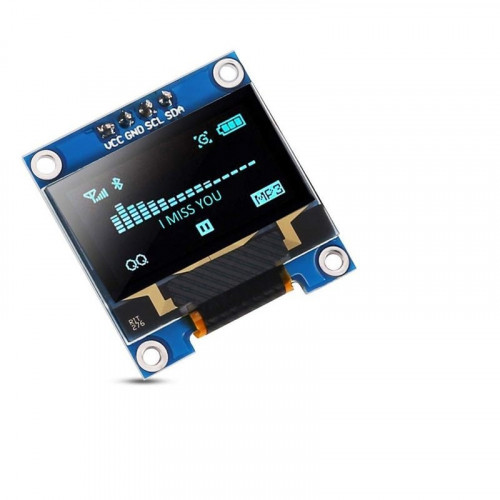

The 0.9 Inch 128×64 OLED Display Screen Module produces blue text on black background with very good contrast when supplied with DC 2.8V supply. The OLED Display Modules also offers a very wide viewing angle of about greater than 160°.

Specifications/Feature

• Work perfectly well without the need of back light.

• 128*64 high resolution, ultra wide viewing angle
• Super low power consumption–only 0.08W when the whole screen lights up and 0.06W when displaying characters
• Fully compatible with multiple controlling chips including Arduino and more.
• Support a wide range of voltage input
• OLED Driver IC: SSD1306

• Resolution: 128 x 64
• Visual Angle: >160°
• Display Color: Area Color (Blue)
• Input Voltage: 3.3V ~ 6V
• Compatible I/O Level: 3.3V, 5V
• Only Need 2 I/O Port to Control
• Full Compatible with Arduino
• Working temperature: -30°C ~ 70°C
• Interface: I2C

Applications

• Ready to connect to I2C Interface

• Display various details from microcontrolled projects like speed, distance, messages etc.
• Works well with Arduino and other micro-controller boards.

Package includes:

1 x OLED Display with 4 pin module

*Image shown is a representation only.
