5pcs: 4 pin - Molex Cpu 3.96mm MALE Connector Straight Header[pin size:1.1sq mm] 7 Amps- KK-396

4-Pin Molex CPU 3.96mm Male Straight Header Connector (KK-396), 5pcs

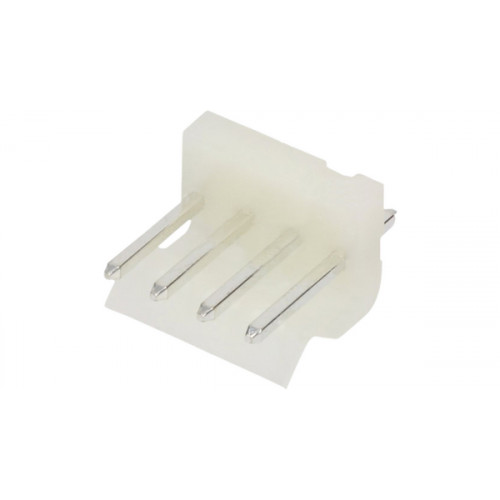

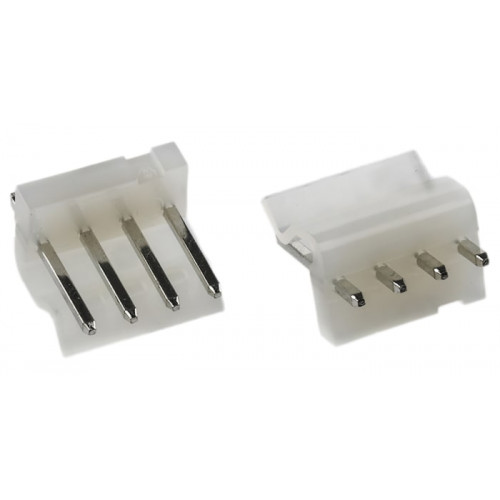

This product consists of a 5-piece pack of 4-pin Molex CPU 3.96mm Male Straight Header Connectors. These KK-396 series connectors are designed for through-hole mounting on printed circuit boards. Each connector features a 1.1 sq mm pin size, supporting a maximum current of 7 Amps. A friction locking mechanism is integrated to prevent accidental disconnections. Constructed from durable nylon, these connectors offer temperature resistance from -20 to 80°C. They are suitable for creating custom cable harnesses and branching assemblies. The straight header design facilitates stable PCB integration. These components provide reliable power and data connections in various electronic applications.

Specifications:

• Material: Plastic (Nylon)
• Housing Size: 3.96 mm
• Number of Housing Pins: 4
• Pin Size: 1.1 sq mm
• Temperature Range: -20 to 80 Degree C
• Model: KK-396
• Mounting Type: Through Hole
• Current Rating: 7A
• Number of Rows: Single Row
• Gender: Male
• Body Orientation: Straight

Key features and benefits:

• Pack of 5 units, 4-pin Molex CPU connectors
• 3.96mm pitch male straight header configuration
• 1.1 sq mm pin size
• 7 Amps current rating
• Integrated friction locking mechanism
• Nylon construction
• Through-hole mounting
• Operating temperature range: -20 to 80°C

Applications:

• Automotive electronics and wiring harnesses
• Industrial control systems and machinery
• Consumer electronics and appliances
• Data communication equipment
• Telecommunications infrastructure
• Custom cable assemblies and power distribution

Frequently Asked Questions:

Q: What is the current rating for these Molex connectors?
A: These connectors are rated for a maximum current of 7 Amps.

Q: What is the operating temperature range for these connectors?
A: The operating temperature range for these connectors is -20 to 80°C.

Q: What mounting type do these connectors utilize?
A: These connectors are designed for through-hole mounting on PCBs.

Package Includes:

*Image shown is a representation only.
