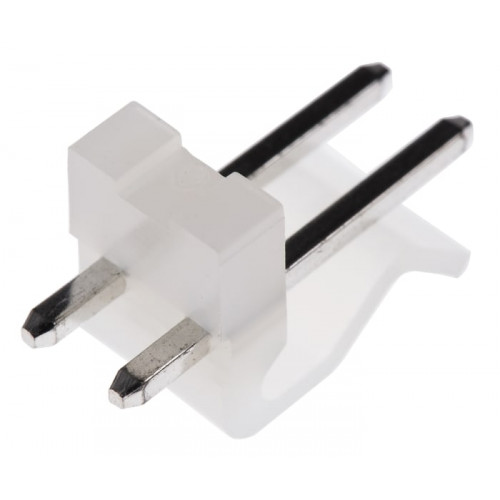

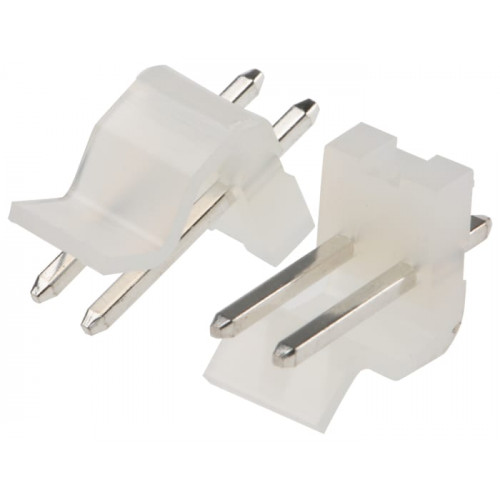

5pcs: 2 pin - Molex Cpu 3.96mm MALE Connector Straight Header[pin size:1.1sq mm] 7 Amps- KK-396

5pcs Molex KK-396 2-Pin Male Straight Header Connector - 3.96mm, 7 Amps

This package contains 5 units of the Molex KK-396 2-pin male straight header connector. The connector features a 3.96mm pitch. Each header accommodates 1.1 sq mm crimped terminals. A current rating of 7 Amps is specified. The design is a straight header with through-hole mounting. A friction locking mechanism is integrated. Construction material is durable nylon plastic. The operating temperature range is -20 to 80 Degree C. These connectors are for power and signal applications. They facilitate custom cable harness assemblies.

Specifications:

• Material: Plastic (Nylon)
• Housing Size: 3.96 mm
• Number of Pins: 2
• Temperature Range: -20 to 80 Degree C
• Model: KK-396
• Mounting Type: Through Hole
• Current Rating: 7A
• Number of Rows: Single Row
• Gender: Male
• Body Orientation: Straight
• Brand: Molex or Industrial standard brand
• Pin Size: 1.1 sq mm

Key features and benefits:

• 2-pin male straight header configuration
• 3.96mm pitch
• Accommodates 1.1 sq mm pin size terminals
• Current rating of 7 Amps
• Friction locking mechanism
• Durable nylon plastic construction
• Through-hole mounting
• Operating temperature range: -20 to 80 Degree C

Applications:

• Automotive electronics
• Industrial control systems
• Consumer electronics devices
• Data communication equipment
• Telecommunications infrastructure
• Custom cable harness assemblies

Frequently Asked Questions:

Q: What is the pin pitch of this connector?
A: The pin pitch is 3.96 mm.

Q: What is the maximum current rating for this header?
A: The maximum current rating is 7 Amps.

Q: Is this connector suitable for through-hole mounting?
A: Yes, it is designed for through-hole mounting on PCBs.

Q: What type of locking mechanism does this connector use?
A: It uses a friction locking mechanism.

Q: What is the compatible pin size for this connector?
A: This connector accommodates 1.1 sq mm crimped terminals.

Q: How many connectors are included in this package?
A: This package includes 5 units.

Package Includes:

*Image shown is a representation only.
