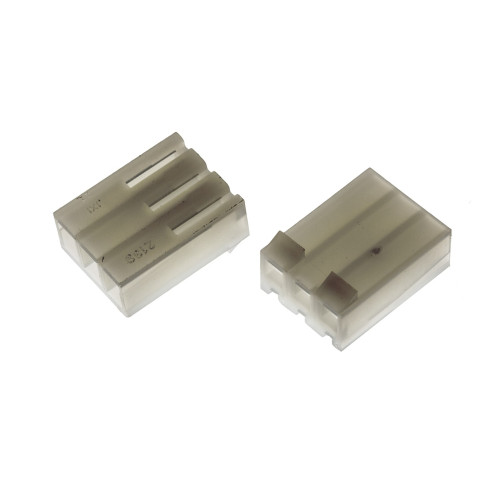

5pcs: 3 pin - Molex CPU 3.96 Female Connector Housing [pin size:1.1sq mm] 7 Amps- KK-396

Molex KK-396 3-Pin Female Connector Housing, 3.96mm Pitch, 7 Amps (5-Pack)

This package contains five Molex KK-396 3-pin female connector housings. Each housing features a 3.96mm pitch. They are designed for compatibility with 1.1 sq mm crimped terminals. The connectors are rated for a maximum current of 7 Amps. Construction utilizes durable Nylon plastic. Operating temperature range is specified from -20 to 80 degrees Celsius. These housings facilitate the creation or repair of custom cable harnesses. Their single-row, straight body orientation supports various integration requirements. Primary applications include CPU power and general electronic connections. This product is suitable for both prototyping and professional installations.

Specifications:

• Material: Plastic (Nylon)
• Housing Pitch: 3.96 mm
• Number of Pins: 3 (Female Housing)
• Temperature Range: -20 to 80 Degree C
• Model: KK-396
• Number of Rows: Single Row
• Gender: Female
• Body Orientation: Straight
• Pin Size Compatibility: 1.1 sq mm
• Current Rating: 7 Amps

Key features and benefits:

• Includes five 3-pin female connector housings
• Molex KK-396 series compatibility
• 3.96mm pitch for standard applications
• Compatible with 1.1 sq mm crimped terminals
• Current rating of 7 Amps
• Constructed from Nylon plastic
• Single-row, straight body orientation
• Operating temperature range: -20 to 80 Degree C

Applications:

• Building custom CPU power cable assemblies
• Integration into DIY electronics projects requiring power connections
• Repair or replacement of existing Molex KK-396 connectors
• Creation of branching cable harnesses for electronic devices
• Prototyping and development board integration

Frequently Asked Questions:

Q: What terminal size is compatible with these Molex KK-396 housings?
A: These housings are compatible with 1.1 sq mm crimped terminals.

Q: What is the maximum current rating for these connectors?
A: Each connector housing is rated for a maximum current of 7 Amps.

Q: What is the operating temperature range for the Nylon material?
A: The specified operating temperature range for these housings is -20 to 80 degrees Celsius.

Package Includes:

*Image shown is a representation only.
