5pcs: 4 pin - Molex CPU 3.96 Female Connector Housing [pin size:1.1sq mm] 7 Amps- KK-396

4 Pin Molex KK-396 CPU 3.96mm Female Connector Housing - 1.1 sq mm, 7 Amps (5 Pcs)

The 4 Pin Molex KK-396 CPU 3.96mm Female Connector Housing is supplied in a 5-piece pack. These housings facilitate power and signal connections in electronic applications. They are designed for use with 1.1 sq mm crimped terminals. Custom cable harnesses or assemblies can be constructed. The connectors have a 7 Amp current rating. They are suitable for power applications. The housings are constructed from Nylon plastic. They operate within a temperature range of -20 to 80°C. Applications include CPU power, PC modding, and general electronics prototyping.

Specifications:

• Connector Type: Female Housing
• Number of Pins: 4
• Pitch / Housing Size: 3.96 mm
• Series: Molex KK-396
• Max Current Rating: 7 Amps
• Compatible Pin Size: 1.1 sq mm
• Material: Plastic (Nylon)
• Temperature Range: -20 to 80°C
• Number of Rows: Single Row
• Body Orientation: Straight

Key features and benefits:

• 4-pin female connector housing
• Molex KK-396 series compatible
• 3.96mm pitch
• Supports 1.1 sq mm crimped terminals
• 7 Amps current rating
• Nylon plastic construction
• Single row, straight body orientation
• Operating temperature range: -20 to 80°C

Applications:

• Custom CPU power cable assemblies
• PC modding and system building
• General electronics prototyping and repairs
• Custom cable harnesses for various devices
• Industrial control systems and embedded applications
• DIY electronics projects

Frequently Asked Questions:

Q: What is the current rating for the Molex KK-396 female connector housing?
A: The Molex KK-396 female connector housing has a maximum current rating of 7 Amps.

Q: What pin size is compatible with the 4 Pin Molex KK-396 connector housing?
A: The 4 Pin Molex KK-396 connector housing is compatible with 1.1 sq mm crimped terminals.

Q: What is the operating temperature range for the Molex KK-396 connector?
A: The Molex KK-396 connector housing operates within a temperature range of -20 to 80°C.

Package Includes:

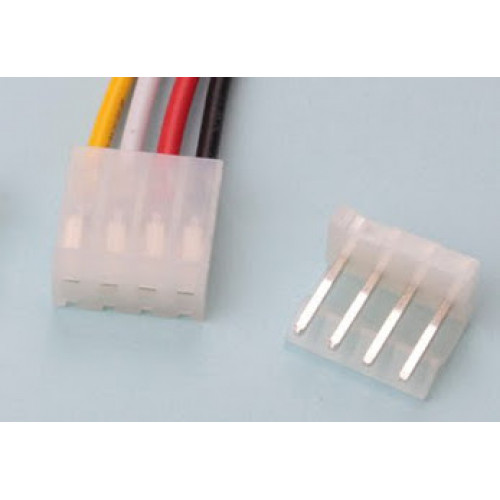

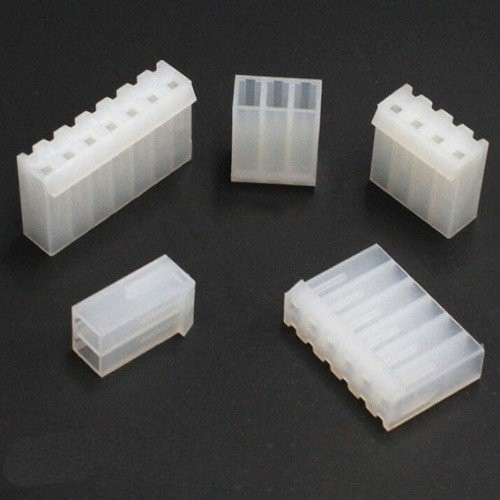

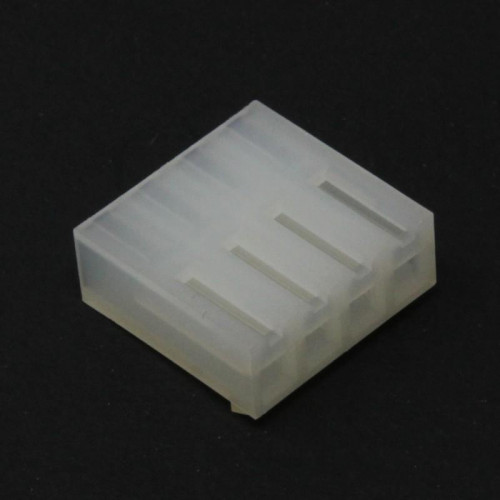

*Image shown is a representation only.
