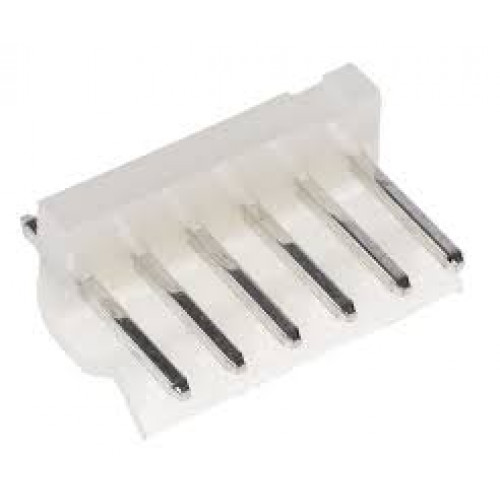

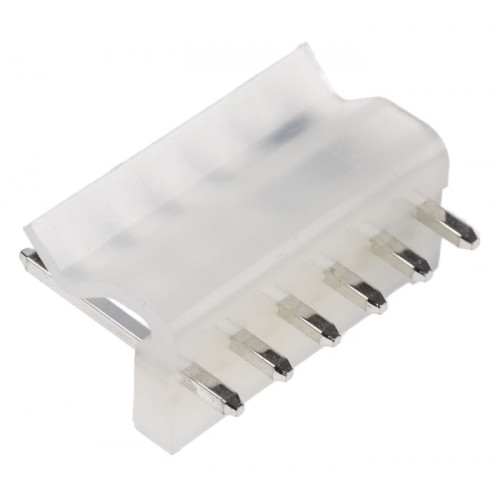

5pcs: 6 pin - Molex Cpu 3.96mm MALE Connector Straight Header[pin size:1.1sq mm] 7 Amps- KK-396

5pcs 6-Pin Molex CPU 3.96mm Male Straight Header Connector KK-396, 7 Amps

This package includes 5 pieces of 6-pin Molex CPU 3.96mm Male Straight Header Connectors, model KK-396. Each connector is rated for 7 Amps. They are compatible with male crimped terminals featuring a 1.1 sq mm pin size. An integrated friction locking mechanism provides a secure mating connection. Constructed from durable Nylon, these headers operate within a temperature range of -20 to 80 degrees Celsius. They are suitable for custom cable harnesses and branching assemblies. Applications include automotive, industrial, consumer electronics, and telecommunications.

Specifications:

• Material: Plastic (Nylon)
• PU Housing Size: 3.96 mm
• Number of Pins: 6
• Temperature Range: -20 to 80 Degree C
• Model: KK-396
• Mounting Type: Through Hole
• Current Rating: 7A
• Number of Rows: Single Row
• Gender: Male
• Body Orientation: Straight
• Pin Size: 1.1 sq mm

Key features and benefits:

• 6-pin Male Straight Header Connector
• 3.96mm pitch (PU Housing Size)
• Compatible with 1.1 sq mm male crimped terminals
• 7 Amps current rating
• Friction locking mechanism
• Durable Nylon plastic construction
• Through-hole mounting type
• Single-row design

Applications:

• Automotive electronics and wiring harnesses
• Industrial control systems and machinery
• Consumer electronics and appliances
• Data communication equipment
• Telecommunications infrastructure
• Custom cable assemblies and prototyping

Frequently Asked Questions:

Q: What is the current rating for these connectors?
A: Each connector has a current rating of 7 Amps.

Q: What pin size are these connectors compatible with?
A: These connectors are compatible with male crimped terminals featuring a 1.1 sq mm pin size.

Q: What is the operating temperature range for the KK-396 connectors?
A: The KK-396 connectors are designed to operate within a temperature range of -20 to 80 degrees Celsius.

Package Includes:

*Image shown is a representation only.
