10pcs: Molex Cpu FEMALE Crimp Terminal Contact 7 Amps- KK-396 (391)
- Product Code: PC-FP_CPU-396-CTH
- Availability: In Stock
-
₹15.00 (+ GST)
- 10 or more quantity/sets : ₹14.50
- 25 or more quantity/sets : ₹14.00
- 50 or more quantity/sets : ₹13.50
- 100 or more quantity/sets : ₹12.50
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)

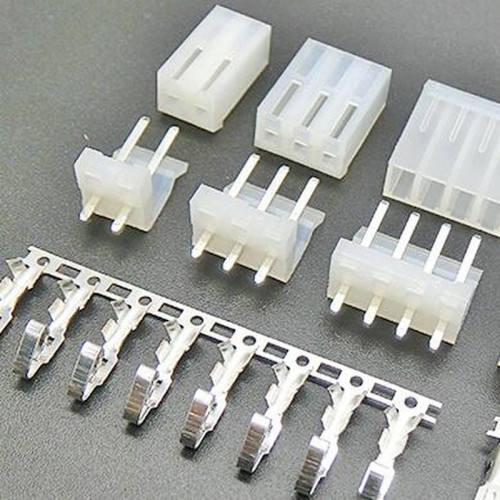

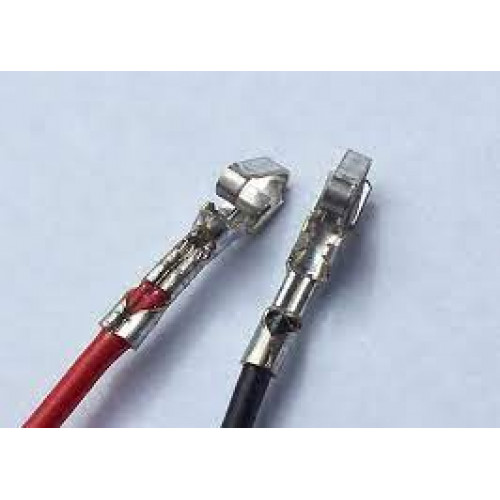

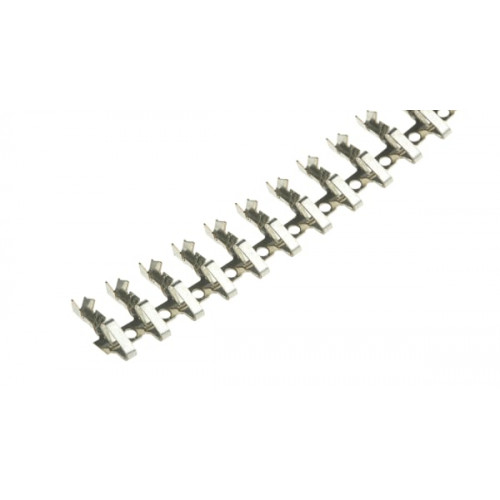

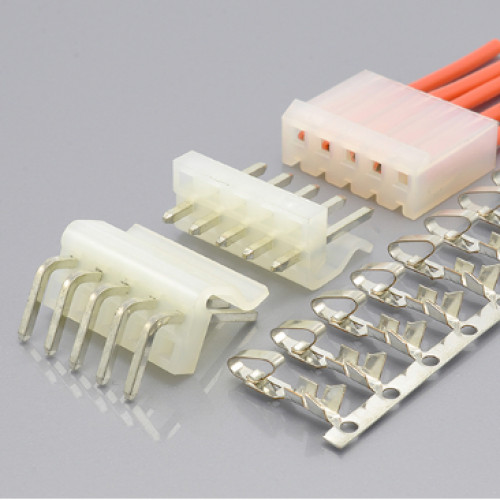

10pcs: Molex Cpu FEMALE Crimp Terminal Contact 7 Amps- KK-396 (391)
Description

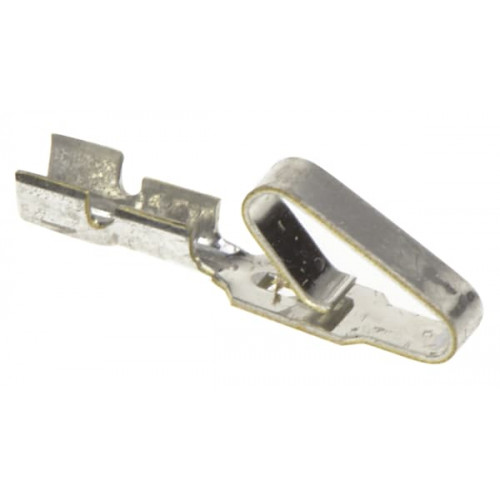

The square post contact area keeps contact with the male pin header through spring-like contact. A locking tang prevents terminal back out once loaded in housing.
Features
- Wire gauge of 18 to 26 AWG
- Brass or Phosphor Bronze material
- Tin or Gold Contact Plating
- Easy to crimp and fits perfect for Molex Female housing 396
Specification
- Gender : Female
- For Use With : KK 396 Connector Housing
- Minimum Wire Size mm² : 0.2mm²
- Maximum Wire Size mm² : 0.8mm²
- Termination Method : Crimp
- Contact Plating : Tin
- Wire Size AWG : 18AWG - 24AWG
- Contact Material : Phosphor Bronze
- Maximum Contact Resistance :6mΩ
- Minimum Operating Temperature :-40°C
- Maximum Operating Temperature :+75°C
- Brand: Molex or Industrial Standard Brand
Package Includes: 10 x Molex CPU FEMALE Crimp Terminal Contact 7 Amps- KK-396 (391)
*Image shown is a representation only.
