Crimper Tool - Ratchet Crimping D-Sub/Handskit Open Barrel Connectors [18-30 AWG] [0.1mm - 1.00mm]

Ratchet Crimper Tool for D-Sub & Open Barrel Connectors (18-30 AWG / 0.1mm-1.00mm)

This Ratchet Crimper Tool is designed for D-Sub and open barrel connectors. It supports wire sizes from 18 to 30 AWG, corresponding to 0.1mm to 1.00mm. The integrated ratchet mechanism ensures a complete crimp cycle for each operation. This mechanism provides consistent, high-quality terminations. The tool is constructed from high-grade hardened steel for durability. Its ergonomic design facilitates efficient operation. This crimping solution is suitable for various wiring projects.

Specifications:

• Model: HT-225D / FC-4 / SN-01B
• Connector Type: D-Sub & Open Barrel
• Crimping Capacity (mm²): 0.10-0.25mm² & 0.50-1.00mm²
• Wire Gauge (AWG): 18-30 AWG (24-30 AWG & 18-22 AWG)
• Weight: Approx. 0.38 Kg
• Frame Material: Middle carbon steel, hardened
• Die Material: SAE J404C alloy steel
• Finish: Black oxide
• Length: 210mm
• Width: 75mm
• Brand: Foss Reach / Handskit
• Origin Country: Taiwan

Key features and benefits:

• Precision ratchet mechanism for consistent, complete crimps.
• Compatibility with D-Sub and open barrel connectors.
• Supports wire range from 18 to 30 AWG (0.1mm to 1.00mm).

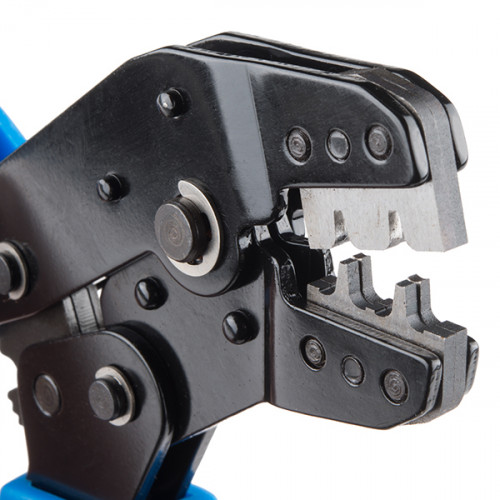

• Equipped with a precision-machined die set for rolled D-Sub contacts.
• Constructed from high-grade hardened steel for durability.
• Ergonomic design for comfortable and efficient operation.

Applications:

• Assembling custom wiring harnesses.
• Professional D-Sub connector installations.
• Industrial-grade crimping tasks.
• Electronics prototyping and repair.
• Automotive and marine electrical work.

Frequently Asked Questions:

Q: What wire gauges does this crimper support?
A: This crimper supports wire gauges from 18 to 30 AWG, which corresponds to 0.1mm to 1.00mm.

Q: What types of connectors is this tool compatible with?
A: This tool is compatible with D-Sub and open barrel connectors.

Q: What material is the crimper constructed from?
A: The crimper features a hardened middle carbon steel frame and SAE J404C alloy steel dies.

Package Includes:

*Image shown is a representation only.
