Stepper Motor - PM35S-048 -Bipolar 48 Step 600mA 24v

Stepper Motor - PM35S-048 -Bipolar 48 Step 600mA 24v

₹75.00 (Excluding 18% GST)
Product Code: RM_SM_PM35S
Reward Points 2
Availability: In Stock

OverView

This is high torque compact 2-2 PHASE stepper motor with 48 steps per revolution with working voltage 24v 600ma. It has enough torque to move small robots and the motor comes...
International Shipping starts from 13 USD: DHL / Fedex (3-7 days priority delivery)

Product Description

This is high torque compact 2-2 PHASE stepper motor with 48 steps per revolution with working voltage 24v 600ma. It has enough torque to move small robots and the motor comes with gear shaft attached.

Usage/Applications

  • OA Equipment : Printers / Scanners
  • Industrial equipment: Flow control valves
  • Automotive : Maters / Optic axis control device
  • Home automation appliances like Sewing machines

Specification

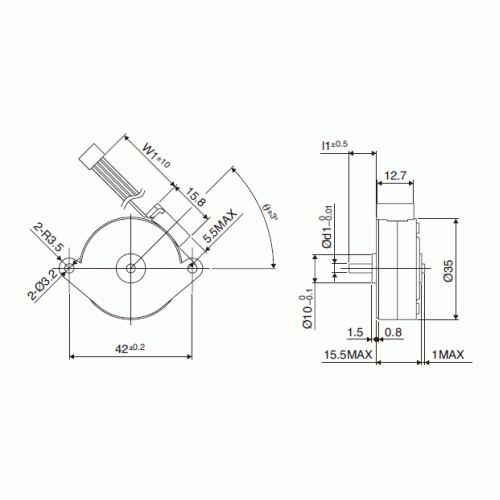

  • Motor Size:                                 PM35S-048
  • Number of Steps per Rotation: 48 (7.5deg/Step)
  • Drive Method:                         2-2 PHASE
  • Drive Circuit:                                 BIPOLAR CHOPPER
  • Drive Voltage:                         24 [V]
  • Current/Phase:                 500 [mA]
  • Coil Resistance/Phase :6.6 [ohms]
  • Drive IC:                                         BD63877EFV

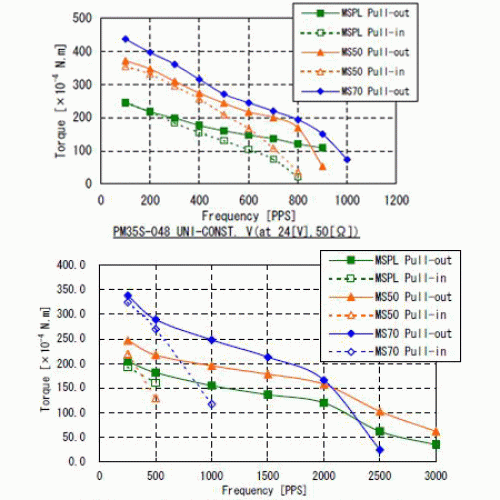

  • Magnet Material Ferrite plastic magnet (MSPL)
  • Polar anisotropy ferrite sintered magnet (MS50)
  • Nd-Fe-B bonded magnet (MS70)
  • Insulation Resistance :                100M [ohms] MIN
  • Dielectric Strength:                  AC 500 [V] 1 [min]
  • Class of Insulation:                  CLASS E (except lead wire)
  • Operating Temp.:                  -10 [deg.C] - 50 [deg.C]
  • Storage Temp.:                      -30 [deg.C] - 80 [deg.C]
  • Operating Hum.:                     20 [%] RH - 90 [%] RH


*Image shown is a representation only.
