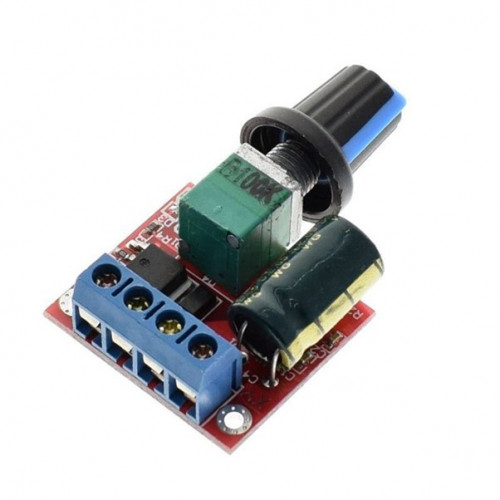

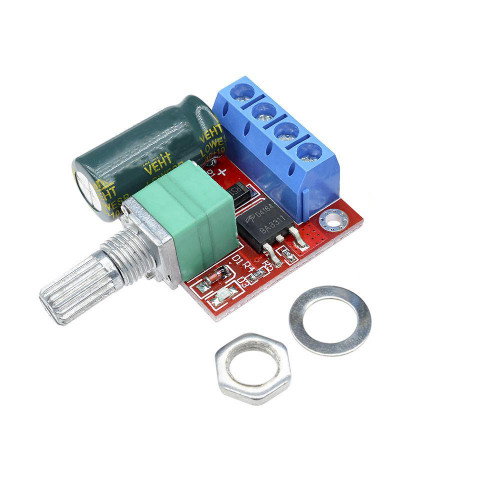

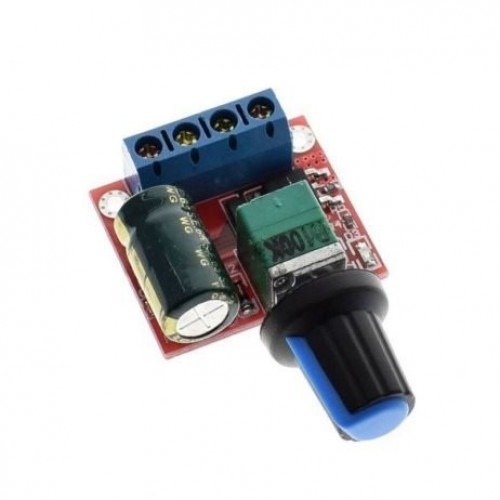

5A PWM DC Motor Speed Regulator - 3V, 6V, 12V, 24V, 35V

5A PWM DC Motor Speed Regulator - 3V, 6V, 12V, 24V, 35V

The 5A PWM DC Motor Speed Regulator module provides control for DC motors. It utilizes Pulse Width Modulation (PWM) technology for speed adjustment. The module accepts an input voltage range from DC 3V to 35V. It delivers up to 5A continuous output current. This regulator is suitable for integration into electronic builds requiring motor speed regulation. Its design supports stable operation in various applications. The module facilitates motor control within specified parameters. Maximum power output is 90W.

Specifications:

• Input Voltage: DC 3V – 35V
• Output Current: Up to 5A (continuous)
• Control Method: PWM (Pulse Width Modulation)
• Max Power: Up to 90W
• Quiescent Current: 7uA (standby)
• PWM Duty Cycle: 1% – 100%
• PWM Frequency: 20kHz
• Dimensions (without knob): 30mm x 26mm x 14mm

Key features and benefits:

• DC 3V to 35V input voltage range
• Up to 5A continuous output current
• Pulse Width Modulation (PWM) control method
• Adjustable speed control via knob
• Compact PCB design with integrated heat dissipation
• 7uA quiescent current
• Adjustable PWM Duty Cycle from 1% to 100%
• Fixed PWM Frequency of 20kHz

Applications:

• DC motor speed control in robotics and automation systems
• Variable speed regulation for electric fans, pumps, and toy motors
• DIY electronic projects requiring motor regulation
• Industrial equipment applications needing adjustable motor speeds
• Educational kits and prototyping for motor control systems

Frequently Asked Questions:

Q: What is the maximum continuous current this regulator can handle?
A: The regulator is rated for up to 5A continuous output current.

Q: Can this module be used with a 24V DC motor?
A: Yes, the input voltage range is DC 3V to 35V, making it compatible with 24V DC motors.

Q: Is polarity important for the input voltage connection?
A: Yes, observe correct polarity for the DC 3V-35V input to prevent damage to the module.

Package Includes:

*Image shown is a representation only.
