10A PWM [12-40V] DC Motor Speed Regulator -12V, 24V, 35V, 40V

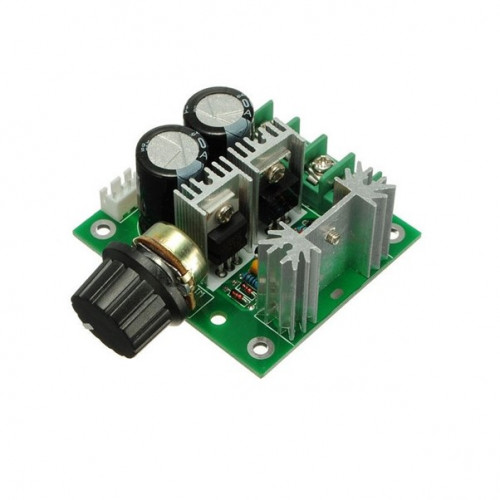

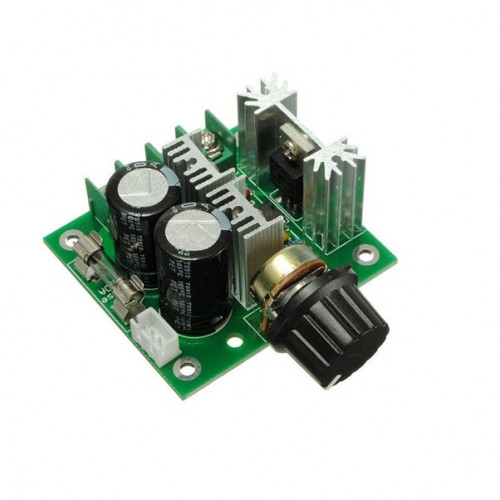

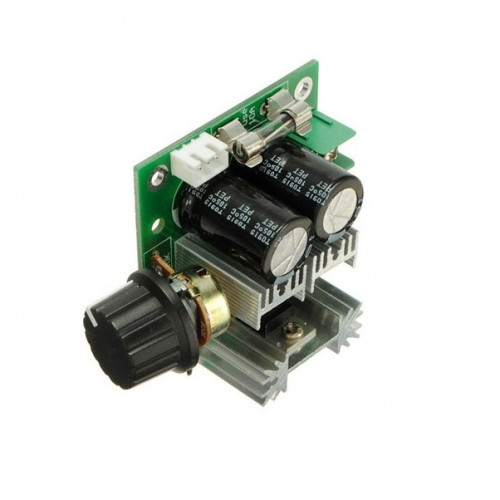

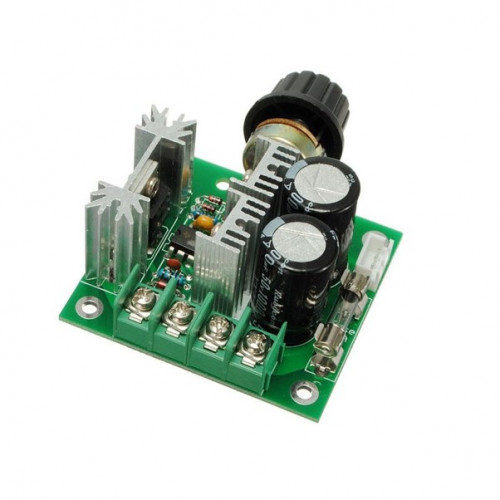

10A PWM DC Motor Speed Regulator Module (12V-40V) with Fuse Protection

This 10A PWM DC Motor Speed Regulator Module controls brushed DC motor speed. It employs Pulse-Width Modulation (PWM) technology. The duty cycle is adjustable from 1% to 100%. Operation occurs across a DC voltage range of 12V to 40V. Compatibility includes 12V, 24V, 35V, and 40V DC systems. The module provides a continuous current up to 10A. It supports DC loads up to 400W. An integrated 10A fuse offers overcurrent protection. Motor speed adjustment is performed via a potentiometer knob. This controller is for brushed DC motors only; it is not compatible with AC power or brushless motors.

Specifications:

• Operating Voltage: 12V-40V DC
• Max Continuous Current: 10A
• Max Power Output: 400W
• Duty Cycle Range: 1% to 100%
• Fuse Rating: 10A
• Motor Type Compatibility: Brushed DC Motors Only
• Control Method: Potentiometer

Key features and benefits:

• PWM speed control for brushed DC motors
• Operating voltage range: 12V to 40V DC
• Continuous current output: Up to 10A
• Supports DC loads up to 400W
• Adjustable duty cycle: 1% to 100%
• Integrated 10A fuse for overcurrent protection
• Potentiometer knob for speed adjustment
• Compatibility with 12V, 24V, 35V, and 40V DC systems

Applications:

• Robotics and Automation Projects
• Electric Fan Speed Control
• Small Pump Speed Regulation
• Conveyor Belt Speed Adjustment
• DIY Motorized Devices

Frequently Asked Questions:

Q: Can this regulator be used with AC motors or brushless DC motors?
A: No, this controller is designed exclusively for brushed DC motors and is not compatible with AC power or brushless motors.

Q: What is the purpose of the integrated 10A fuse?
A: The integrated 10A fuse provides overcurrent protection for the circuit and connected motor.

Q: How is the motor speed adjusted?
A: Motor speed is adjusted using the onboard potentiometer knob.

Package Includes:

*Image shown is a representation only.
