Stepper Motor - PM42S-048 -Bipolar 48 Step 600mA 24v -high torque

PM42S-048 Bipolar Stepper Motor - 48 Steps, 24V, 600mA, High Torque

The PM42S-048 is a 2-2 phase bipolar stepper motor. It provides high torque output. The motor has 48 steps per revolution, equating to 7.5° per step. It operates at 24 volts. Current draw is 500mA per phase. An integrated gear shaft facilitates mounting. Its construction supports consistent output. This motor is suitable for motion control projects.

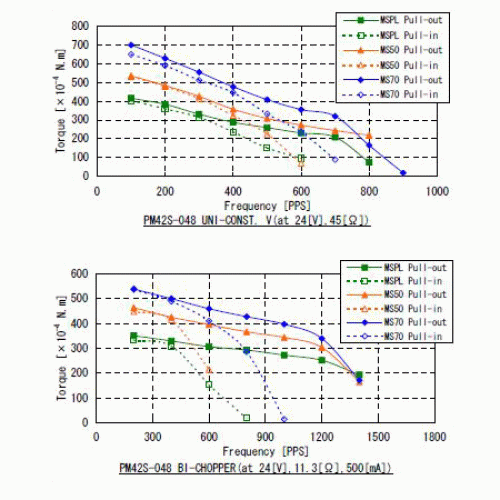

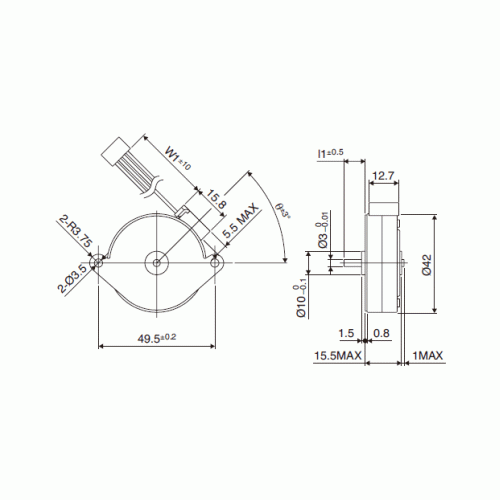

Specifications:

• Motor Model: PM42S-048
• Steps per Rotation: 48 (7.5°/Step)
• Drive Method: 2-2 PHASE
• Drive Circuit: BIPOLAR CHOPPER
• Drive Voltage: 24 V
• Current per Phase: 500 mA
• Coil Resistance per Phase: 11.3 ohms
• Drive IC: BD63877EFV
• Insulation Resistance: 100 MΩ MIN
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -30°C to 80°C
• Operating Humidity: 20% RH to 90% RH

Key features and benefits:

• High torque output
• 2-2 PHASE bipolar design
• 48 steps per revolution (7.5 degrees/step)
• Operates at 24V with 500mA/phase
• Integrated gear shaft
• Class E insulation
• Operating temperature range: -10°C to 50°C
• BD63877EFV drive IC utilized

Applications:

• OA Equipment: Printers, Scanners, office automation
• Industrial Equipment: Flow control valves, automated machinery
• Automotive: Metering systems, optic axis control devices
• Home Automation: Sewing machines, smart appliance control
• Small Robotics: Driving wheels, arms
• DIY Projects: CNC machines, 3D printers, custom automation

Frequently Asked Questions:

Q: What is the required drive voltage for this motor?
A: The PM42S-048 operates at 24 V.

Q: What is the current draw per phase?
A: The motor draws 500 mA per phase.

Q: How many steps per revolution does this motor provide?
A: This motor provides 48 steps per revolution, equivalent to 7.5° per step.

Q: Does this motor include a gear shaft?
A: Yes, the PM42S-048 features an integrated gear shaft.

Q: What is the operating temperature range?
A: The operating temperature range is -10°C to 50°C.

Package Includes:

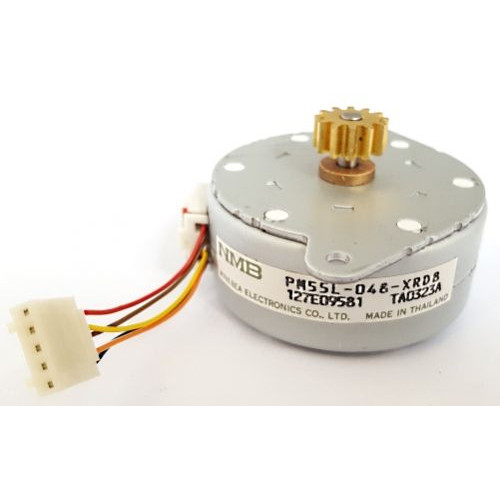

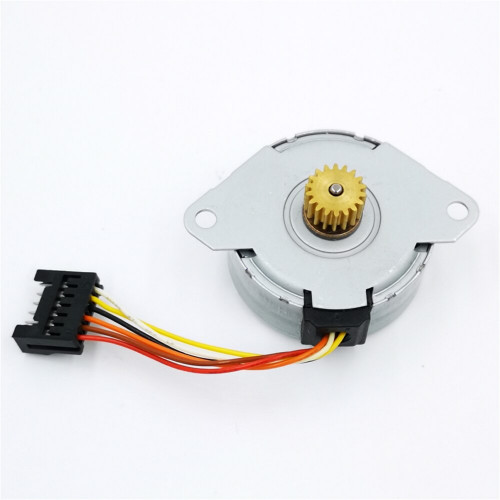

*Image shown is a representation only.

Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
