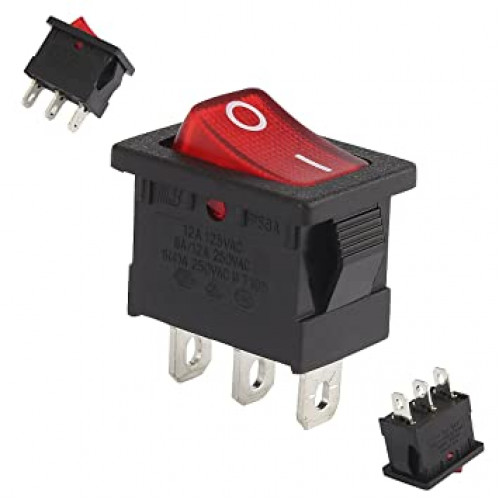

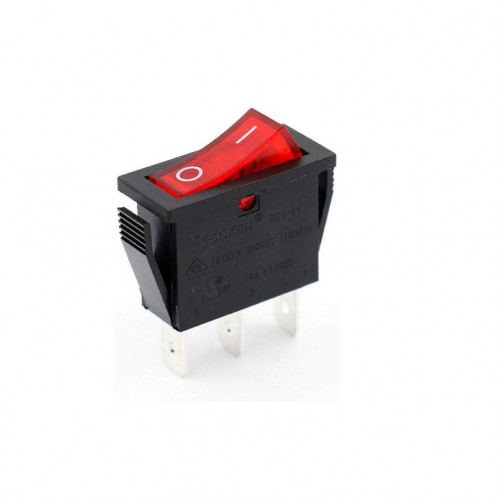

SPST on-off Rocker Switch [BLACK] with Red Light (16A) - 3pin [Original]

SPST On-Off Rocker Switch - Black with Red LED, 16A, 3-Pin

The SPST On-Off Rocker Switch provides power control. It features a black housing with an integrated red LED indicator. The switch is rated for 16A at 250VAC. It incorporates a 3-pin terminal configuration. Panel mounting is achieved via snap-in tabs, eliminating the need for screws. 'On' and 'Off' positions are clearly marked. Construction utilizes plastic and metal materials. This component is designed for power management in various electronic systems.

Specifications:

• Rated Voltage & Current: 16A@250VAC
• Voltage Resist Capacity: 2000V/min
• Working Temperature: -20 to 80 °C
• Life Cycle: >10,000 times
• Switching Mode: ON-OFF (SPST)
• Panel Cut-Out: 28 x 10 mm
• Material: Plastic and Metal
• Colour: Black with Red Light
• Dimensions (L x W x H): 30 x 12 x 18 mm
• Weight: 10 gm

Key features and benefits:

• SPST On-Off switching functionality
• 16A @ 250VAC current rating
• Integrated Red LED indicator
• Snap-in panel mounting
• Clearly marked 'On' and 'Off' positions
• Plastic and metal construction
• 3-pin terminal configuration

Applications:

• Automotive projects (cars, boats, RVs)
• Home appliances and DIY electronics
• Industrial control panels and machinery
• Hobbyist circuits and prototypes
• Power supply units and lighting systems

Frequently Asked Questions:

Q: What is the current rating of this SPST rocker switch?
A: The switch is rated for 16A at 250VAC.

Q: How is this rocker switch mounted?
A: This rocker switch features snap-in tabs for panel mounting, eliminating the need for screws.

Q: What is the function of the red light on the switch?
A: The integrated red light serves as an indicator, displaying the on/off status of the switch.

Package Includes:

*Image shown is a representation only.
