Rocker Switch (KCD1-101) ON-OFF AC 6A 250V 10A 250V SPST 2Pin Mini Switch

KCD1-101 ON-OFF SPST 2-Pin Mini Rocker Switch (6A/10A 250V AC)

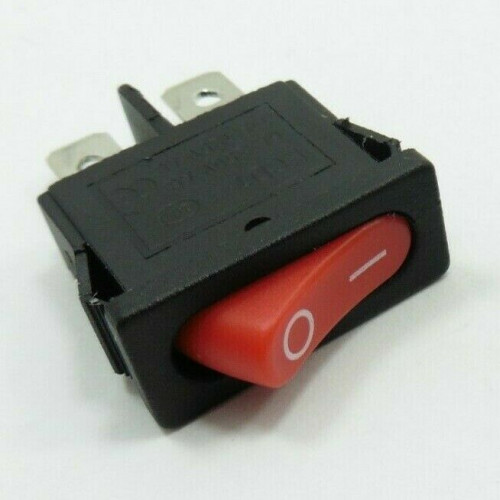

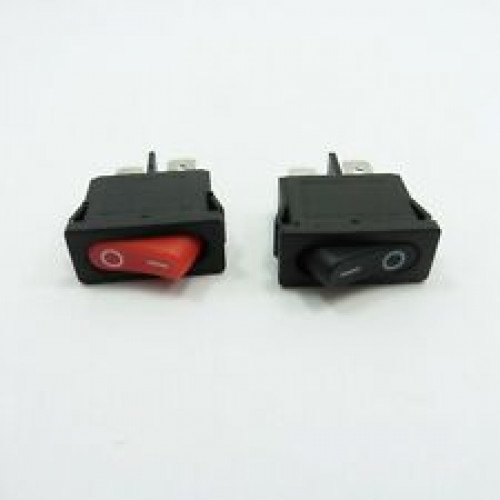

The KCD1-101 ON-OFF Rocker Switch is a compact electrical control component. It features an SPST (Single Pole Single Throw) configuration. The switch utilizes a 2-pin design for integration. It is rated for 6A and 10A at 250V AC. Construction ensures an operational life exceeding 10,000 cycles. ON-OFF (I-O) markings are present for control indication. Its miniature size facilitates panel mounting. The switch operates within a -20°C to 80°C temperature range.

Specifications:

• Model: KCD1-101

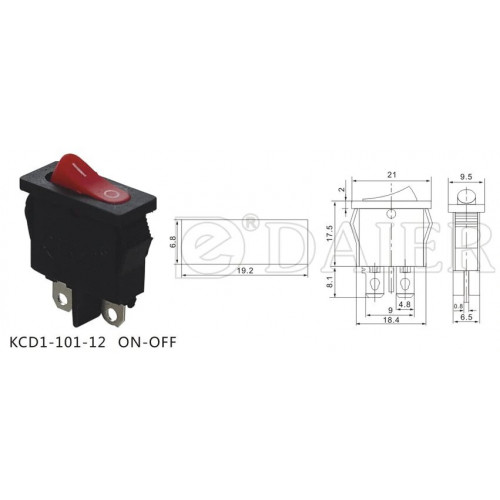

• Size: 21mm x 9.5mm
• Voltage Rating: 125V AC, 250V AC
• Current Rating: 6A, 10A
• Position: ON-OFF / I-O
• Pins: 2
• Voltage Resist Capacity: 2000V/min
• Working Temperature: -20°C to 80°C
• Life Cycle: >10000 times

Key features and benefits:

• Compact Mini Design (21mm x 9.5mm)
• SPST (Single Pole Single Throw) Configuration
• Dual Current Ratings: 6A and 10A at 250V AC
• Operational Life Cycle: >10,000 operations
• 2-Pin Panel Mounting
• Voltage Resist Capacity: 2000V/min
• Operating Temperature Range: -20°C to 80°C

Applications:

• Small Home Appliances (e.g., lamps, fans, power strips)
• DIY Electronics and Hobby Projects
• Control Panels for equipment
• Automotive and Marine Auxiliary Lighting/Accessories
• Prototyping and Educational Kits

Frequently Asked Questions:

Q: What is the function of an SPST rocker switch?
A: An SPST (Single Pole Single Throw) rocker switch functions as a basic ON-OFF control, connecting or disconnecting a single circuit.

Q: What are the voltage and current ratings for the KCD1-101 switch?
A: The KCD1-101 switch is rated for 125V AC and 250V AC, with current ratings of 6A and 10A.

Q: What is the operational life cycle of this rocker switch?
A: The KCD1-101 rocker switch has an operational life cycle exceeding 10,000 times.

Package Includes:

*Image shown is a representation only.
