SPST- PSB 110 -[ GREEN ]- Panel Mount Push to ON Button / Switch (momentary) [Original]

SPST Green Panel Mount Push to ON Momentary Button Switch (PSB 110)

This SPST Green Panel Mount Push to ON Momentary Button Switch provides reliable control. It features a "Push to ON" function suitable for diverse electronic applications. The Single-Pole, Single-Throw (SPST) configuration facilitates direct circuit integration. A green button provides visual indication. Engineered for durability, it offers a life cycle exceeding 10,000 operations. Panel mounting capability ensures a clean installation. Its momentary action closes the circuit only while the button is actuated. This component is applicable for both hobbyist and professional control solutions.

Specifications:

• Switch Type: SPST, Momentary
• Action: Push to ON (Normally Open)
• Current Rating: 4A @ 125 VAC, 2A @ 250 VAC
• Shaft Diameter: 7 mm
• Contacts: 2
• Working Temperature: -20°C to 80°C
• Life Cycle: >10,000 times
• Color: Green

Key features and benefits:

• SPST momentary switch
• "Push to ON" action
• Green button
• Panel mount design
• Life cycle >10,000 operations
• Rated 4A @ 125 VAC, 2A @ 250 VAC
• Compact form factor
• Operating temperature range: -20°C to 80°C

Applications:

• Electronic projects and prototypes
• Control panels and dashboards
• DIY automation systems
• Robotics and embedded systems
• Industrial equipment interfaces
• Audio/visual equipment

Frequently Asked Questions:

Q: What is the function of an SPST momentary switch?
A: An SPST (Single-Pole, Single-Throw) momentary switch closes a single circuit only while the button is pressed, returning to its open state upon release.

Q: What are the electrical ratings for this PSB 110 switch?
A: This switch is rated for 4A at 125 VAC and 2A at 250 VAC.

Q: What is the typical life cycle of this panel mount button?
A: This panel mount button is designed for a life cycle exceeding 10,000 operations.

Package Includes:

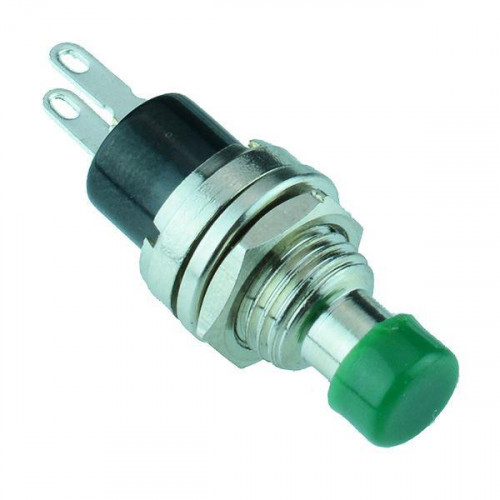

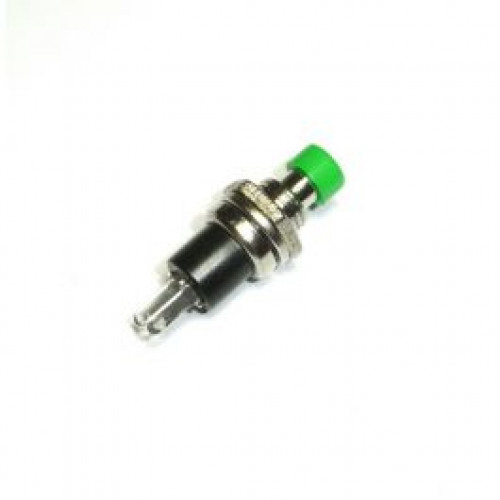

*Image shown is a representation only.
