SPST- PSB-110 -[ RED ]- Panel Mount Push to ON Button / Switch (momentary) [Original]

SPST PSB-110 Red Panel Mount Momentary Push Button Switch

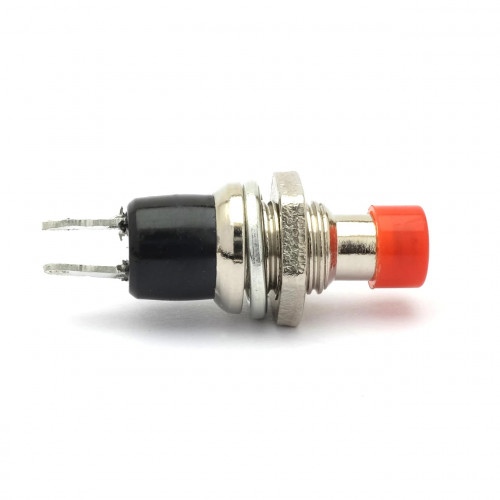

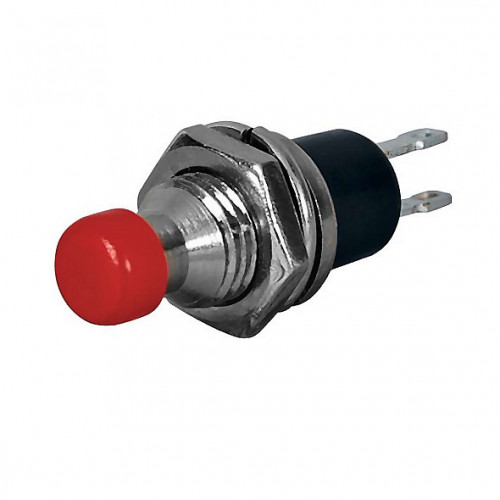

The SPST PSB-110 is a red panel mount momentary push button switch. It operates as a "Push to ON" switch, completing a circuit when pressed. The switch features a normally open (NO) contact configuration. It is designed for panel mounting, integrating into control panels and electronic projects. The switch has a current rating of 5A at 125 VAC and 2A at 250 VAC. Its construction supports a life cycle exceeding 10,000 operations. The operating temperature range is -20°C to 80°C. A 7mm shaft diameter facilitates installation.

Specifications:

• Switch Type: SPST, Push to ON (Momentary)
• Switch Colour: RED
• Current Rating: 5A @ 125 VAC, 2A @ 250 VAC
• Shaft Diameter: 7 mm
• Number of Contacts: 2
• Working Temperature: -20°C to 80°C
• Life Cycle: >10,000 times

Key features and benefits:

• SPST (Single Pole, Single Throw) momentary action
• "Push to ON" functionality with normally open (NO) contacts
• Red button for visual identification
• Panel mount design with 7mm shaft diameter
• Life cycle exceeding 10,000 operations
• Operating temperature range: -20°C to 80°C
• Rated 5A @ 125 VAC and 2A @ 250 VAC

Applications:

• DIY electronics projects and prototypes
• Control panels and industrial equipment
• Automotive and marine systems
• Hobbyist circuits and educational kits
• Custom alarm systems and doorbells

Frequently Asked Questions:

Q: What is the mounting hole diameter for this switch?
A: The switch requires a 7 mm diameter mounting hole for panel integration.

Q: Can this switch be used with 24V DC circuits?
A: The switch is rated for 5A @ 125 VAC and 2A @ 250 VAC. While not explicitly rated for DC, its AC rating suggests it may handle lower DC voltages, but specific DC ratings are not provided.

Q: Is this a latching or momentary switch?
A: This is a momentary switch, meaning it returns to its original state (normally open) when the button is released.

Q: What is the expected operational lifespan of this switch?
A: The switch has a life cycle exceeding 10,000 operations.

Package Includes:

*Image shown is a representation only.
