RED (PB-305A) Panel Mount Push button round / Self-Locking Switch [Original]

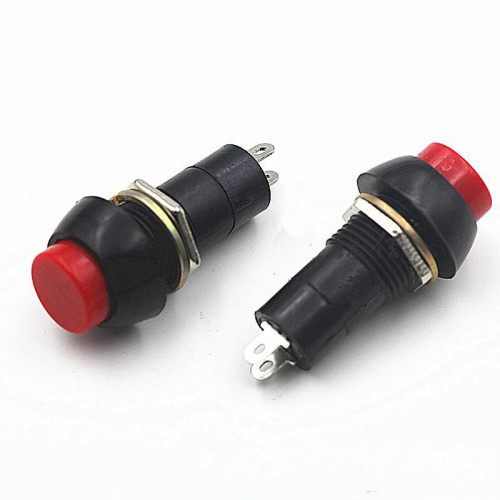

RED PB-305A Panel Mount Self-Locking Round Push Button Switch

The RED PB-305A is a panel mount push button switch. It features a round form factor and a self-locking mechanism. This switch maintains its state after actuation until manually released. Operation involves a push-to-lock and push-to-unlock function. The component is for integration into control panels and enclosures. Its red color provides a visual status indicator. The switch offers specified electrical and mechanical durability. It is suitable for various electronic control applications.

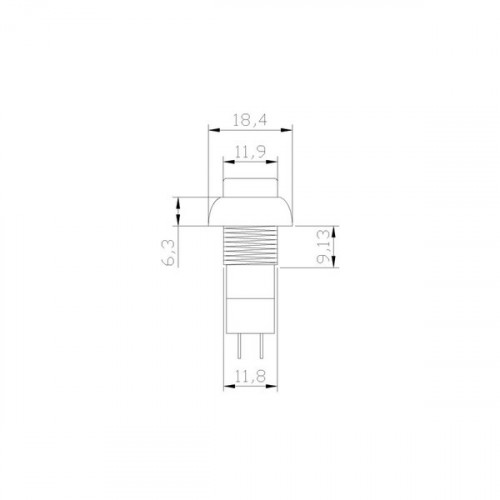

Specifications:

• Rated Power: 3A 125VAC or 1A 250VAC
• Contact Resistance: 50mΩ max.
• Withstanding Voltage: AC 1000V (50/60Hz for 1 minute)
• Insulation Resistance: 100MΩ min (DC 500V)
• Mounting Hole Diameter: 12mm
• Soldering Time Limit: Not more than 3 seconds
• Electrical Life: 50,000 cycles
• Mechanical Life: 100,000 cycles

Key features and benefits:

• Self-locking mechanism for circuit state retention.
• Push-to-unlock function for circuit release.
• Panel mounting for control boards and enclosures.
• Durable construction.
• Red color for visual indication.
• Standard round form factor.

Applications:

• Industrial Control Panels.
• Automation Systems.
• Security Systems.
• DIY Electronics Projects.

Frequently Asked Questions:

Q: What is the required mounting hole diameter for this switch?
A: The required mounting hole diameter is 12mm.

Q: What are the maximum voltage and current ratings for this switch?
A: The switch is rated for 3A at 125VAC or 1A at 250VAC.

Q: Does this switch maintain its state after being pressed?
A: Yes, this is a self-locking switch, meaning it maintains its state until pressed again to unlock.
