LNK 304 PN power Integrations - Buck Converter AC - DC switch 85-265 VAC 170mA OCP 8DIP (LNK304PN)
- Product Code: ICOA_LNK304PN
- Availability: Out Of Stock
-
₹47.00 (+ GST)
- 10 or more quantity/sets : ₹46.00
- 25 or more quantity/sets : ₹45.00
- 50 or more quantity/sets : ₹43.50
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
LNK304PN Power Integrations Buck Converter AC-DC Switch 85-265VAC 170mA 8DIP
The LNK304PN from Power Integrations is a highly integrated LinkSwitch-TN family AC-DC buck converter. Engineered for energy efficiency, it's designed to replace linear and capacitor-fed non-isolated power supplies. This device excels in applications requiring up to 360mA output current, offering superior performance and efficiency at a comparable system cost. It integrates a 700V power MOSFET, oscillator, and comprehensive protection features onto a single monolithic IC. Operating power is derived directly from the DRAIN pin, eliminating the need for external bias supplies. Its auto-restart circuit safely limits output power during fault conditions like short-circuits or open loops. This reduces component count and overall system-level load protection costs, making it an ideal solution for compact and reliable power conversion.
Specifications:
- Model: LNK304PN
- Type: AC/DC-Offline (non-isolated)
- Topology: Buck, Buck-Boost, Flyback
- Mounting Form: DIP-8B-7
- Input Voltage: 85 - 265 VAC
- Output Current: 0.17 A (170mA)
- Number of Pins: 7 Pins
- Temperature Range: -40 to +150 °C
- Frequency: 66 kHz
Key features and benefits:
- Lowest component count buck converter solution
- Universal input voltage range (85 to 265VAC)
- Excellent line and load regulation
- High bandwidth for fast turn-on with no overshoot
- Built-in current limit and hysteretic thermal protection
- Higher efficiency than passive solutions
- Higher power factor than capacitor-fed solutions
- Supports buck, buck-boost, and flyback topologies
Applications:
- Small home appliances and white goods
- Smart home and IoT devices
- Industrial control and automation systems
- Non-isolated LED lighting applications
- Standby and auxiliary power supplies
Package Includes:

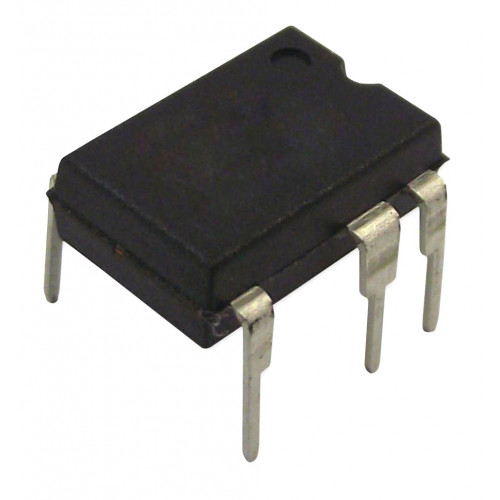

1x LNK304PN Power Integrations Buck Converter IC.*Image shown is a representation only.
