SCT-013-030 Non-invasive AC Current Sensor Clamp Sensor 30A

SCT-013-030 Non-invasive AC Current Sensor Clamp 30A

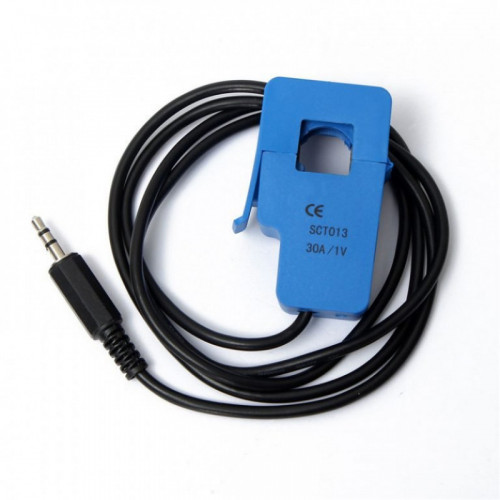

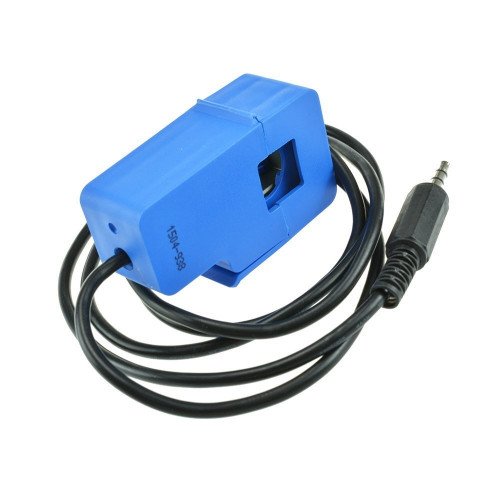

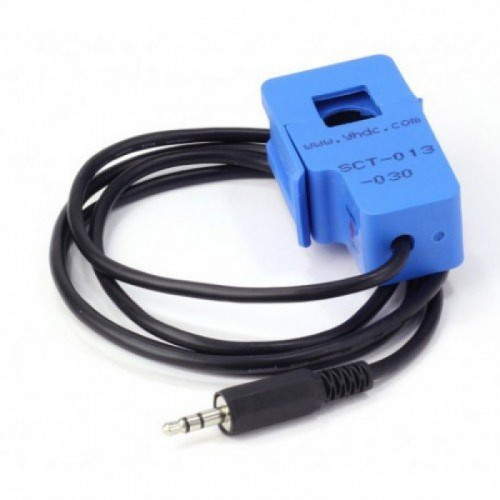

The SCT-013-030 is a highly efficient non-invasive AC current sensor, designed as a current transformer. It accurately measures AC current up to 30 amperes without direct contact with the circuit. This clamp sensor allows for easy, non-intrusive measurement by simply clipping it around the supply line. It's perfect for calculating current flow in various AC loads, providing valuable data for your projects. Utilize this sensor to build your own energy monitor, helping you track and reduce power consumption. It's also an excellent component for developing robust over-current protection devices for AC circuits. The sensor produces a small AC voltage output directly proportional to the measured current. For convenient integration, the cable is terminated with a standard 3.5mm audio jack. This robust and user-friendly sensor is ideal for both hobbyists and professionals seeking reliable current measurement.

Specifications:

• Core Material: Ferrite
• External Material: ABS
• Input Current: 0-30A
• Opening Size: 13×13 mm
• Dielectric Strength: 6000 VAC/1min
• Operating Temperature: -25 to 85 °C
• Output Mode: 0-1V @ 30mA
• Device Length: 57 mm
• Device Width: 36 mm
• Device Height: 21 mm
• Weight: 65 gm
• Cable Length: 1 Meter

Key features and benefits:

• Non-invasive current transformer design for safe measurement
• Capable of measuring AC current up to 30 Amperes
• Standard 3.5mm audio jack output for easy connectivity
• High dielectric strength of 6000 VAC/1min for enhanced safety
• Meets UL94-V0 flame retardant properties for material safety
• Low non-linearity of ±3% (10%-120% rated input current)
• Suitable for a wide range of AC loads and monitoring applications

Applications:

• Building custom energy monitoring systems
• Developing over-current protection devices for AC loads
• Monitoring current in lighting equipment and appliances
• Measuring current for AC motors and air compressors
• General current measurement and protection in electronics projects

Package Includes:
