XL6009 DC-DC Step-Up Converter with adjustable Booster power supply board module
- Product Code: BM_XL6009_VPSB
- Availability: In Stock
- ₹98.00
-
₹65.00 (+ GST)
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)

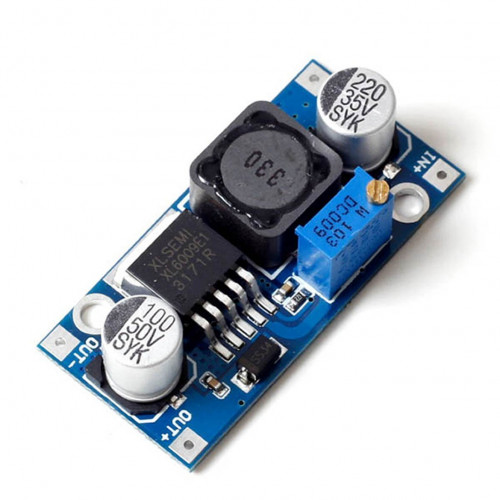

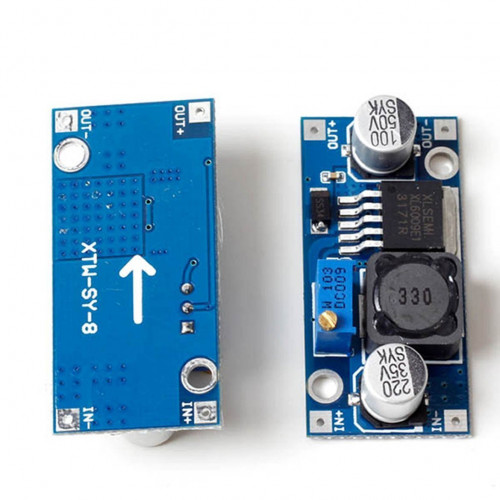

XL6009 DC-DC Step-Up Boost Converter Module with Adjustable Power Supply
The XL6009 DC-DC Step-Up Converter is a high-performance power supply board designed to efficiently boost input voltages. It takes a wide input range of 3.3V to 32V DC and provides an adjustable output voltage from 5V to 35V DC. This module is perfect for applications requiring a higher voltage than the available power source. Featuring a robust 4A MOSFET switch, it achieves an impressive efficiency of up to 94%. The onboard variable resistor allows for precise output voltage tuning. Integrated rectification, filtering circuits, and a power indication LED ensure reliable operation. Its compact design includes mounting holes for easy installation into your projects. This versatile module is an essential component for various electronic systems and DIY endeavors, providing stable and constant power.
Specifications:
- Input Voltage: 3V to 32V DC
- Input Current: 4A (Max)
- Output Voltage: 5V to 35V DC (Adjustable)
- Output Ripple: 50mV
- Efficiency: Up to 94%
- Switching Frequency: 400KHz
- Load Regulation: ±0.5%
- Voltage Regulation: ±0.5%
- Length: 43mm
- Width: 20mm
- Height: 12mm
Key features and benefits:
- Wide Input Voltage Range: 3V to 32V DC
- Adjustable Output Voltage: 5V to 35V DC
- High Conversion Efficiency: Up to 94%
- Integrated 4A Efficient MOSFET Switch
- High Switching Frequency: 400KHz for reduced ripple
- Onboard Adjustable Potentiometer for precise voltage setting
- Built-in Rectification, Filtering Circuit, and Power Indicator LED
- Compact Design with Mounting Holes for easy integration
Applications:
- DIY Electronics Projects and Prototyping
- Battery-Powered Devices Requiring Higher Voltage
- Robotics and Automation Systems
- LED Lighting Power Supplies
- Automotive Electronics Voltage Boosting
- Portable Power Solutions and Chargers
Package Includes:
1x XL6009 DC-DC Step-Up Boost Converter Module.*Image shown is a representation only.
