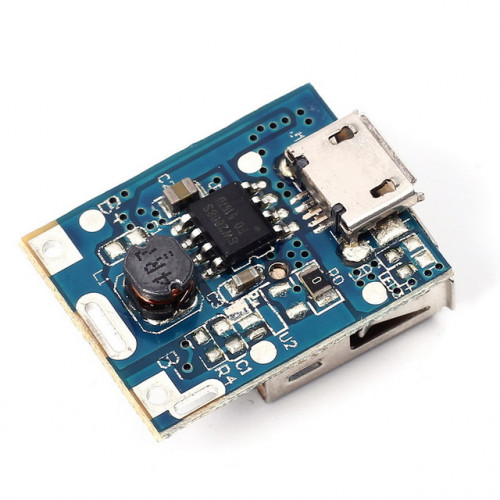

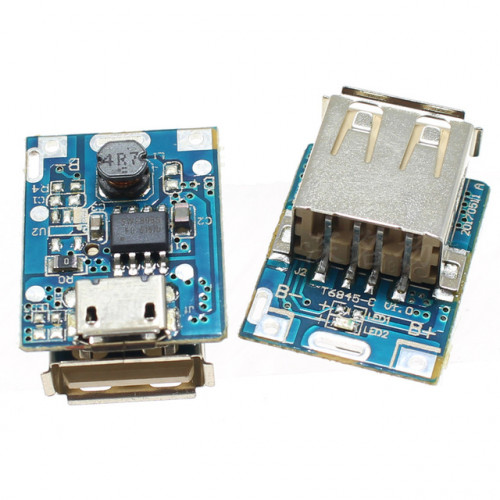

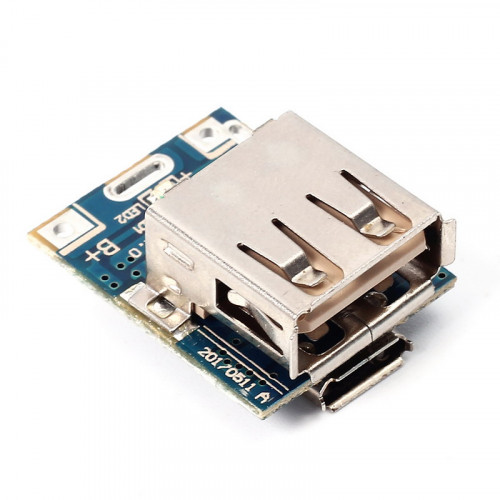

USB 5V Step-Up Power Module Lithium Battery Charging Protection Board

USB 5V Step-Up Power Module with Lithium Battery Charging & Protection

Discover the versatile USB 5V Step-Up Power Module, a compact solution for your electronics projects. This board efficiently converts lower voltage inputs to a stable 5V output, ideal for powering various devices. It features robust lithium battery charging capabilities, ensuring safe and effective power management. Comprehensive built-in protection guards against overcharging, over-discharging, and short circuits. Extend battery life and device longevity with its intelligent safeguards. Perfect for creating custom portable chargers, power banks, or upgrading existing systems. High-quality integrated circuits guarantee reliable and consistent performance. Empower your DIY creations with this intelligent power solution, offering stable 5V power and smart battery management.

Specifications:

• Input Voltage: 3.7V (Lithium Battery)
• Output Voltage: 5V
• Output Current: Up to 1A
• BAT Discharging Stop Voltage: 2.9V
• Discharging Efficiency: 85% (3.7V input, 5V/1A output)
• Preset Charging Voltage: 4.2V (±1% precision)
• Max Standby Current: 8uA
• Charging Indication: Red flashing (charging), Solid Red (fully charged)

Key features and benefits:

• Integrated Lithium Battery Charging & Discharging Management
• Comprehensive Protection: Overcharge, Over-discharge, Short Circuit, Overload
• Intelligent Temperature Control & Overtemperature Protection
• Preset 4.2V Charging Voltage with ±1% Precision
• Low Standby Current (Max 8uA) for extended battery life
• Visual Charging Status Indication (Red light for charging/full)
• High Discharging Efficiency (85% at 3.7V input, 5V/1A output)

Applications:

• DIY Portable Power Banks & Custom USB Chargers
• Powering Small Electronic Projects & Microcontrollers
• Battery Management for IoT Devices
• Emergency 5V Power Supply Solutions

Package Includes:

*Image shown is a representation only.
