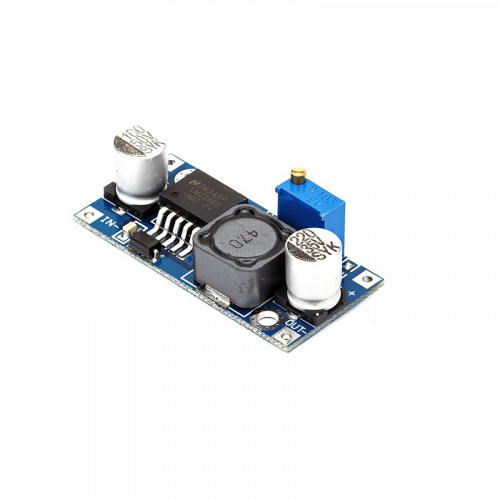

LM2596 : DC-DC Buck Converter Power Supply - Step down Module (variable voltage)
- Product Code: BM_LM2596_DC
- Availability: In Stock
- ₹65.00
-
₹43.00 (+ GST)
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
LM2596 power supply Module - Buck Converter - Continuous voltage supply
Description
The LM2596 Buck Converter is a highly efficient DC-DC step-down power supply module designed to convert higher input voltages into stable, lower output voltages. This versatile module is capable of driving loads up to 3A and is available in fixed output voltages of 3.3V, 5V, and 12V, along with an adjustable version for customized applications.
Key Features
- Adjustable Output Voltage: The LM2596 allows for precise tuning of the output voltage, making it ideal for various electronic projects.
- High Efficiency: With a switching frequency of 150kHz, this module minimizes power loss and enables the use of smaller filter components compared to lower frequency regulators.
- Wide Input Range: It accepts input voltages from 4.5V to 40V, providing flexibility for different power sources.
- Compact Design: Its small footprint ensures easy integration into various projects without occupying much space.
- Built-in Protection: Features such as overcurrent and thermal shutdown protect connected devices from damage, ensuring safe operation.
Applications
The LM2596 Buck Converter is perfect for:
- DIY Electronics Projects: Ideal for hobbyists looking to create reliable power supplies for their circuits.
- Prototyping Circuits: Engineers can utilize this module to test and refine designs, ensuring optimal performance in electronic systems.
- Battery-Powered Devices: Its efficiency in voltage conversion enhances battery life, making it suitable for portable gadgets.
- Voltage Regulation Needs: Whether powering microcontrollers, sensors, or other components, this module provides stable voltage outputs critical for performance.
Specifications:
- Input voltage :3-40V
- Output voltage :1.5-35V(Adjustable)
- Output current :Rated current is 2A, maximum 3A(Additional heatsink is required)
- Switching Frequency :150KHz
- Operating temperature :Industrial grade (-40 to +85 )
- Conversion efficiency :92%(highest)
- Load Regulation :± 0.5%
- Voltage Regulation :± 0.5%
- Dynamic Response speed :5% 200uS
- Dimension :45*20*14mm(L*W*H)
Feature
- Input voltage:3-40V
- Output voltage:1.5-35V(Adjustable)
- Output current: Rated current is 2A, maximum 3A(Additional heatsink is required)
- Module Properties: non-isolated constant voltage module
- Rectification: non-synchronous rectification
- Short circuit protection: current limiting, since the recovery
*Image shown is a representation only.
Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
